This is my recreation of the Deutsche Bahn's Cargo Carriage "Roos-t 645", made with a lot of care.

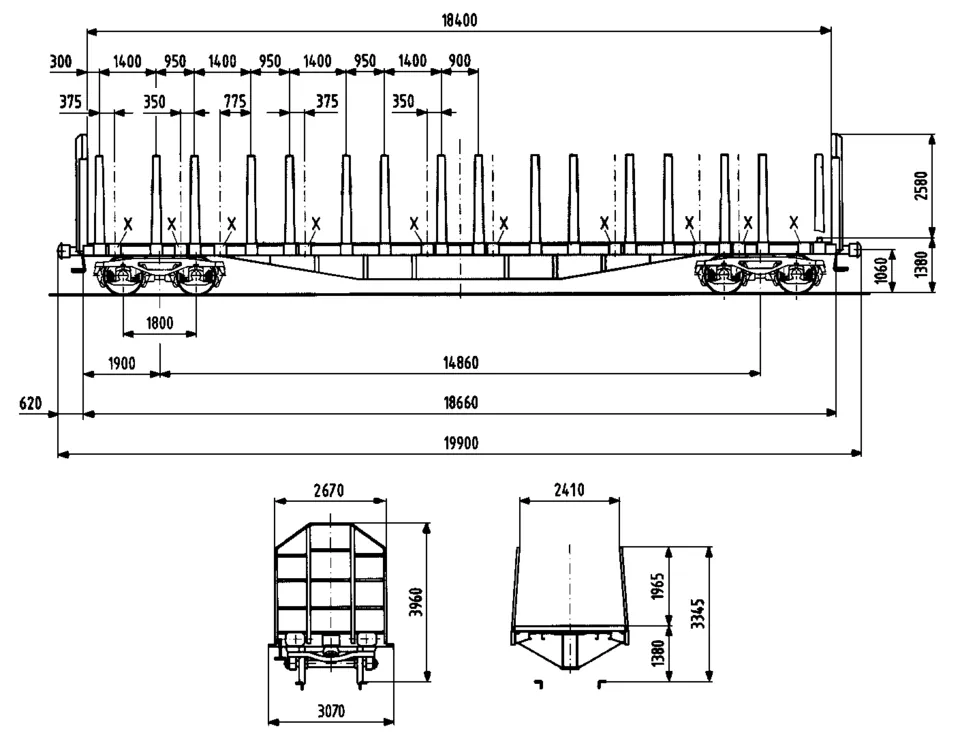

It is widely used on german rails for transporting cut logs, and with a length of 19,9 meter, width of 3,07 meters and a hight of 3,96 meters, it is highly efficient at this task.
Open to recommendations, and other questions
----------------------------------------------------------------------------
Technical Details (lazily copy/pasted)
Loading length (mm)
18,400
Loading width (mm)
2,650
Loading height (mm)
1,965
Loading area (m2)
48.6
Loading space (m3)
99.0
Average tare weight (kg)
25,000
Top speed (km/h)
120
International usability
RIV
Smallest track curve radius (m)
75
First year of delivery or year of construction of the z. Z. Oldest car
1987
Year of conversion
2000 (from Res 678)
Parking brake
Without parking brake
Brake type
KE-GP
Number of brake cylinders (pcs.)
1
Brake cylinder diameter (mm)
406
Load braking type
2-stage, mechanical
Buffer type
UIC 526-1, Cat. A
Buffer head dimensions (mm)
450 x 340
Automatic coupling
Prepared (spring strut support)
Control valve type
KE 2adSL
________________________
Made by Ethem712
Do not claim to be made by yourself.
