Fab's Boat Stability MC (TM)
This is my first MC-upload, I hope you guys enjoy it!
Ive noticed that most other stability MCs for ships stabilize your craft by referencing the horizont instead of the water itself. Those work great, but look ass in high waves because your ship doesnt pitch and roll with the water anymore.

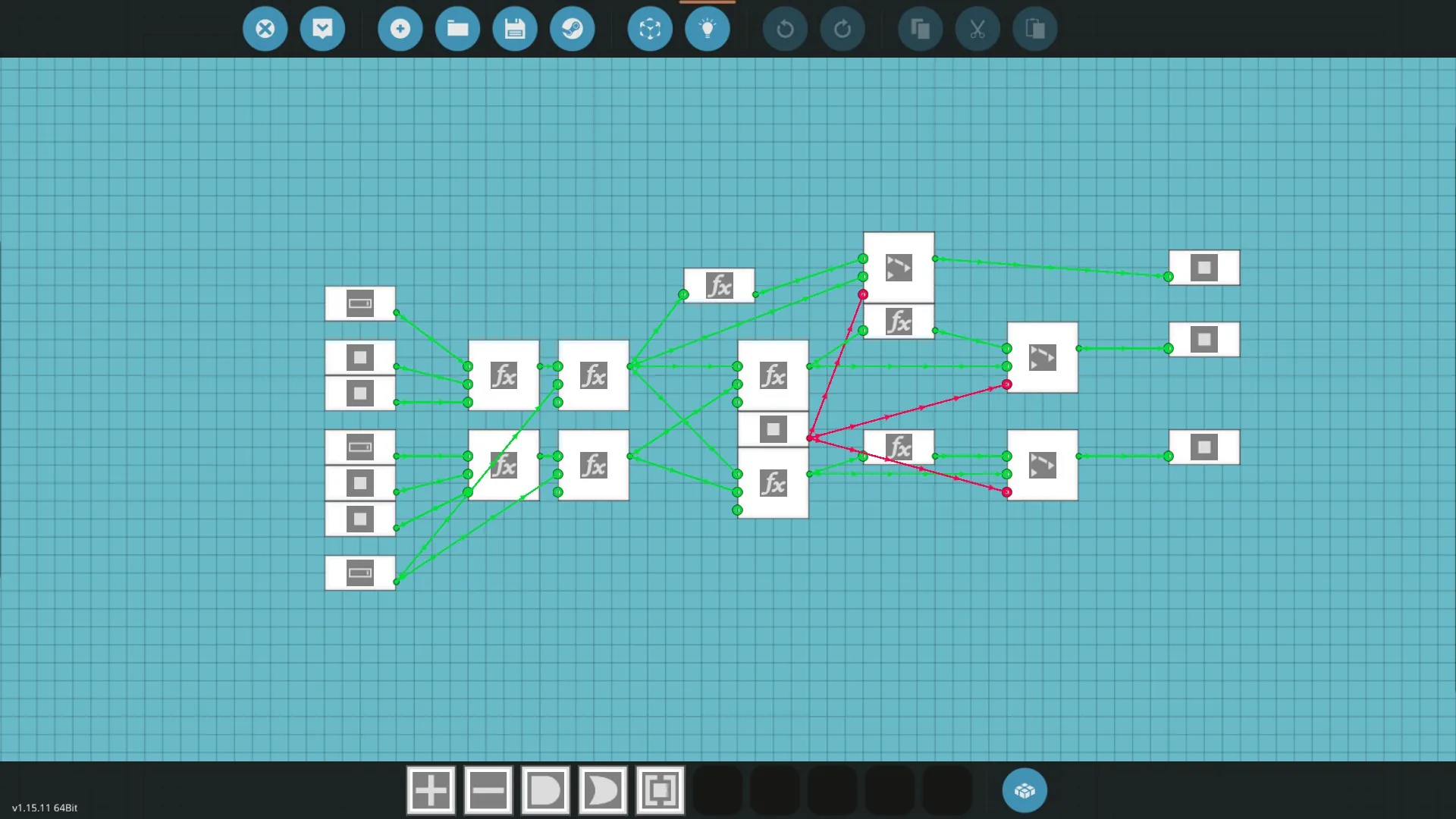

Thats why I created this rather simple MC that uses trigonometry to correct your ships pitch and roll in reference to the water surface.
How to set up?
You need to place four liquid meters facing into the ocean on the bottom of your craft. The front and back one as well as the left and right one must be on one plane or it will not work. Connect the "liquid level" outputs to the MC, and, if your boat has one, connect your reverse button to the MC.
Next is setting up the control surfaces.
You need to place at least two at the rear, or else you cant use the roll stabilization.
Place the one(s) at the front with the "-" facing upwards and the ones at the back with "+" upwards.
Connect the front control surface to "Center CS"
If you only have one CS at the rear, connect it to "Center CS" as well.
If you have an even ammount, connect the right side to "right CS", the left side to "left CS"
If you have an uneven ammount, just connect the center one to "Center CS"
Last Step:

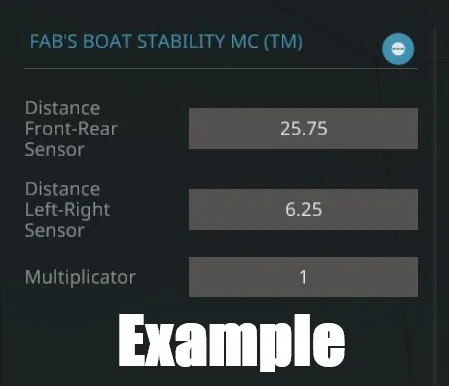

Select the MC and put in the distance (including the blocks) between the sensors (Value will be used as the adjacent cathetus).
If you feel like the MC is either too aggressive or not aggressive enough, adjust the "Multiplicator" Value.
Have fun!
If you use this MC in one of your crafts, please credit me.
Feel free to ask questions, and, more importantly, please give me ideas to make this MC better!
