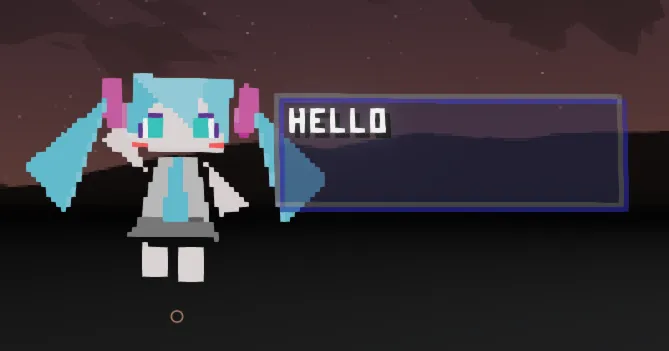

[img]https://images.steamusercontent.com/ugc/13650502289414481060/2E86E3DB24CFD515C35F9C2B07444F3811A8B1A5/?imw=512&&ima=fit&impolicy=Letterbox&imcolor=%23000000&letterbox=false[/img]

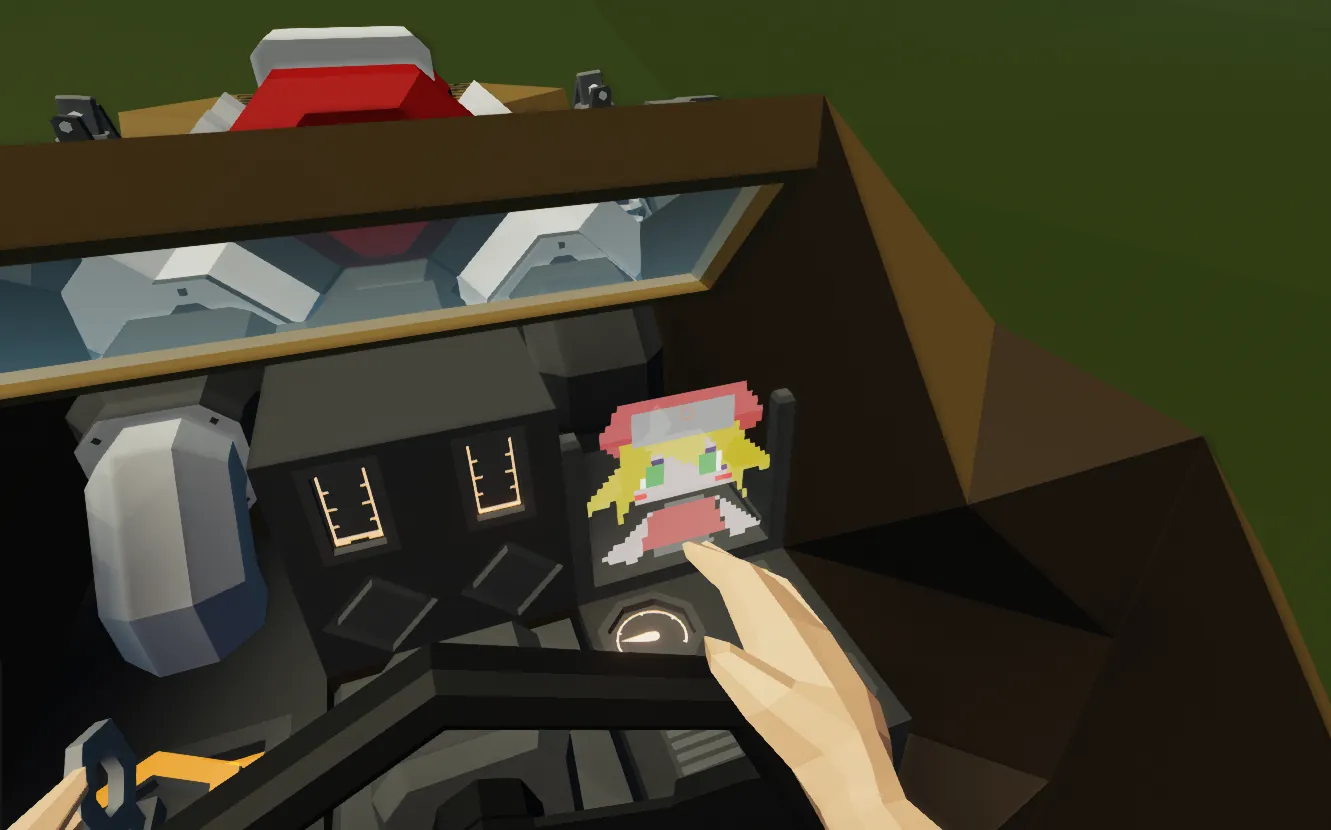

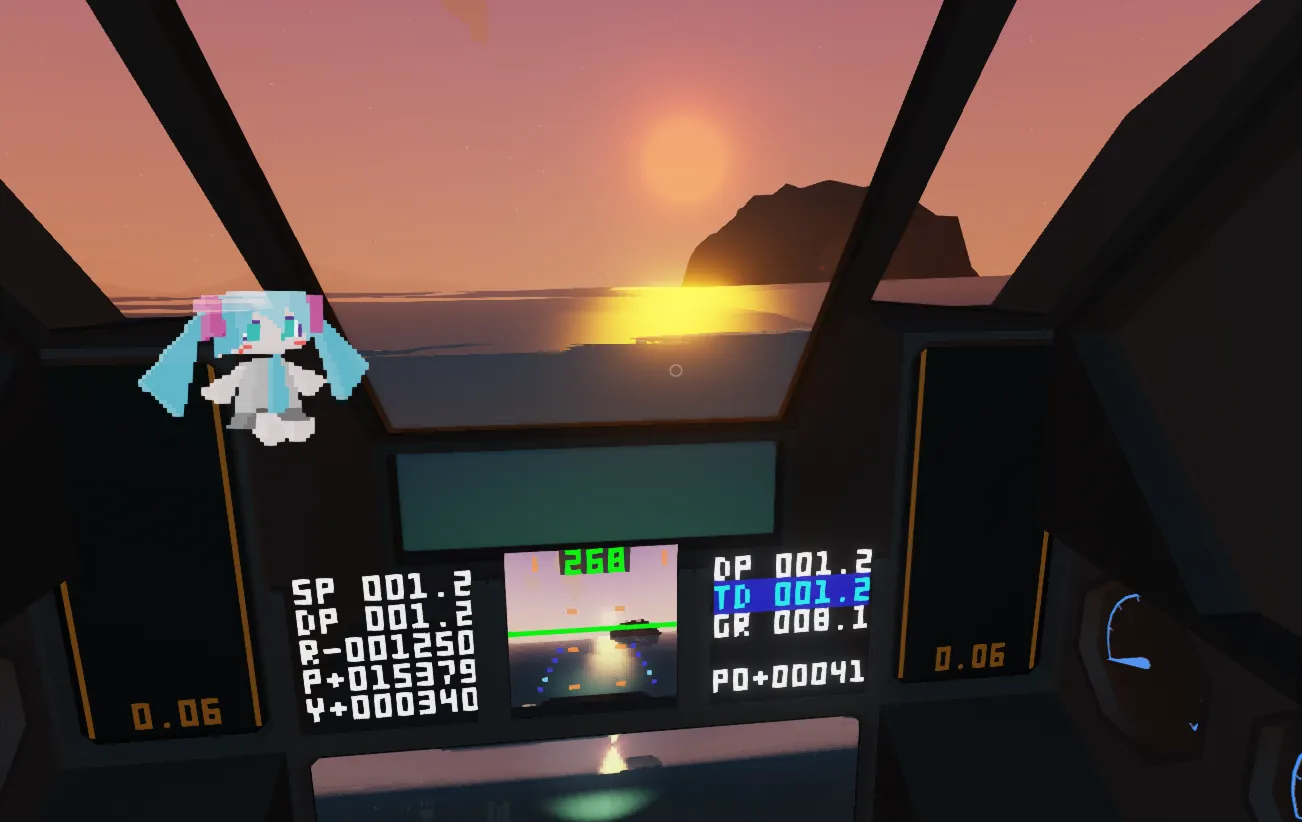

HUD MASCOT
[hr]

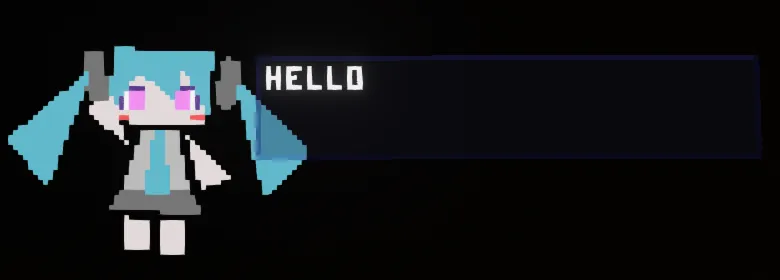

This microcontroller displays a mascot character and messages on the HUD.
[list]
[*] Input the mascot motion ID and message ID into composite signals
[*] Motions are selected from preset animations
[*] Messages can be customized by setting properties
[*] Messages can include arbitrary values (such as sensor readings)
[*] Display emote icons (customizable).
[*] You must create your own controller microcontroller to operate this one according to your vehicle (sample included)
[/list]
SPECIFICATION
[hr]
COMPOSITE
NO
NAME
RANGE
DESCRIPTION
1
rotate (roll)
-1 ~ 1
Mascot rotation (Roll) (*1)
2
reserved
---
---
3
rotate (yaw)
-1 ~ 1
Mascot rotation (Yaw) (*1)
4
reserved
---
---
5
emote ID
0 ~ 89
Emote ID (0: Hidden)
6
reserved
---
---
7
motion ID
0 ~ 10
Motion ID (0: Idle motion)
8
reserved
---
---
9
message ID
0 ~ 19
Message ID (0: Hidden)
10
reserved
---
---
11
val %1
(float64)
Value displayed in the message (*2)
~
~
~
~
19
val %9
(float64)
(*1) Effective only while IDLE.
ex) intended usage:
By feeding Seat composite 1(AD) and 3(LR), or Physics Sensor composite 10(angular X) and 11(angular Y) into composite 1(rotate roll) and 3(rotate yaw), the mascot’s tilt will reflect those values while in the idle state.
(*2) Values are rounded to two decimal places.

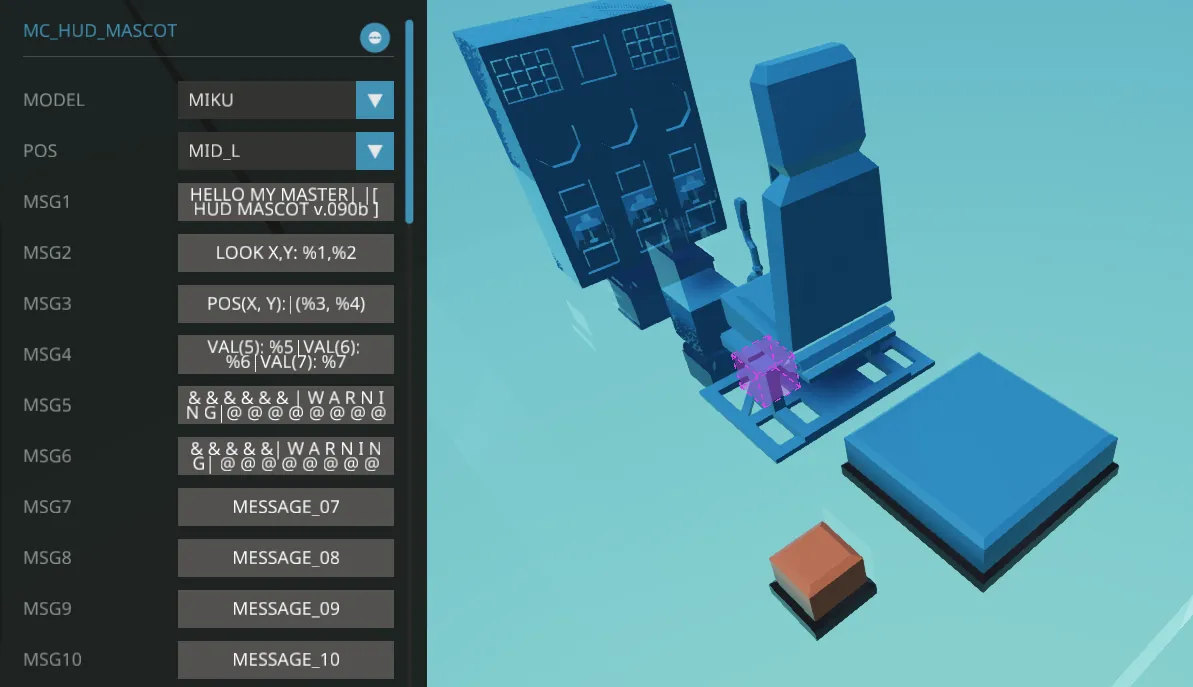

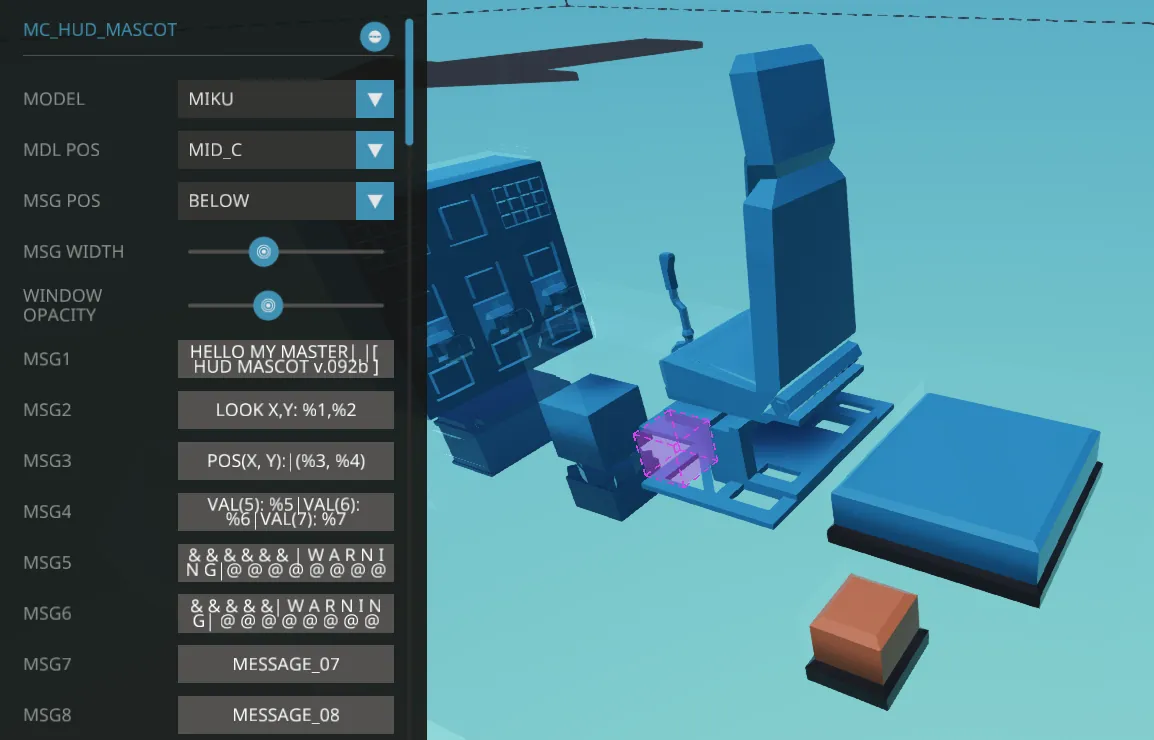

PROPERTIES

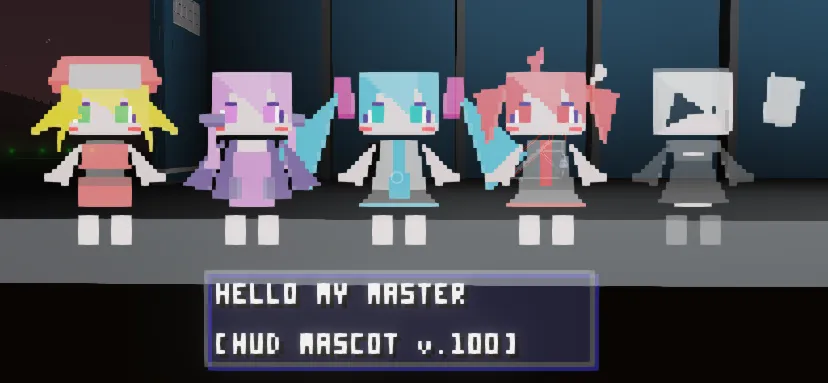

[img]https://images.steamusercontent.com/ugc/11210016869866592286/B1692A10BB7A0D014833940733FFA85ED8B62607/?imw=256&&ima=fit&impolicy=Letterbox&imcolor=%23000000&letterbox=false[/img]
NAME
DESCRIPTION
VER.
MODEL
Displayed mascot (5 types)
1.00
MDL POS
Mascot display position (TopLeft, TopCenter, ..., BottomRight)
MSG POS
Message display position (LEFT, RIGHT, ABOVE, BELOW)
0.92b
MSG WIDTH
Maximum characters per line (22 characters for 3×3 HUD)
0.92b
WINDOW OPACITY
Message window opacity
0.92b

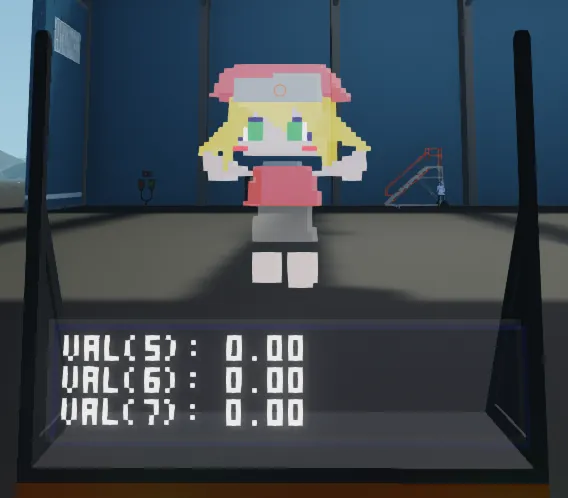

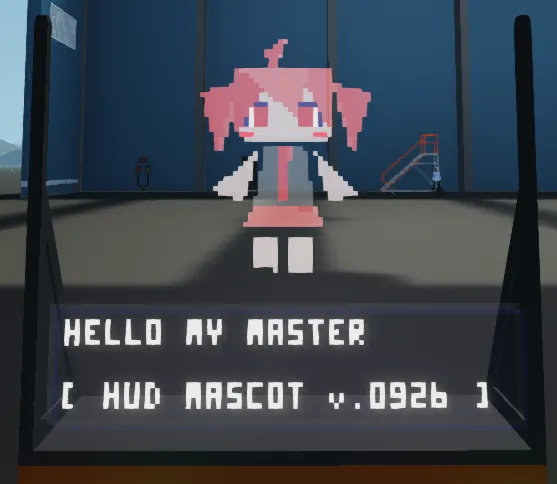

MSG1–19
Custom messages (up to 3 lines) (*3)
EMO70–89
Custom emote data
1.00
(*3)
ex) MSG1: "SPEED:| %1 kmh"
- "|" : Line break
- "%n": Displays the input value
MOTION
ID
NAME
ID
NAME
ID
NAME
ID
NAME
ID
NAME
0
IDLE
1
WAVE
2
WALK
3
RUN
4
SIT
5
NOD
6
SHAKE HEAD
7
CHEER
8
FLAIL
9
DANCE
10
TAKE ON ME
--
----
--
----
--
----
--
----
OUTPUT
DEVICE
DESCRIPTION
NOTE
HUD
Recommended
W256 x H192
Monitor 2x2 or larger
When not displaying messages
W64 x H64
Monitor 3x3 or larger
When displaying messages
W96 x H96
EXAMPLE
[hr]

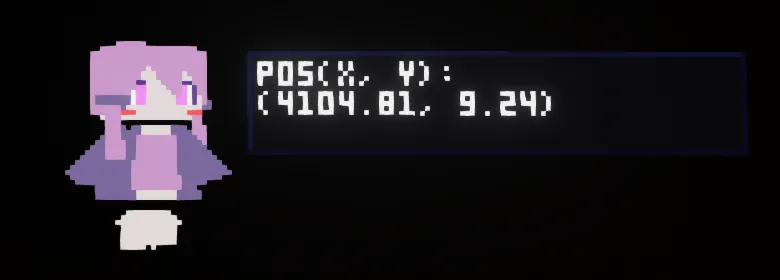

Walking motion + Current coordinates

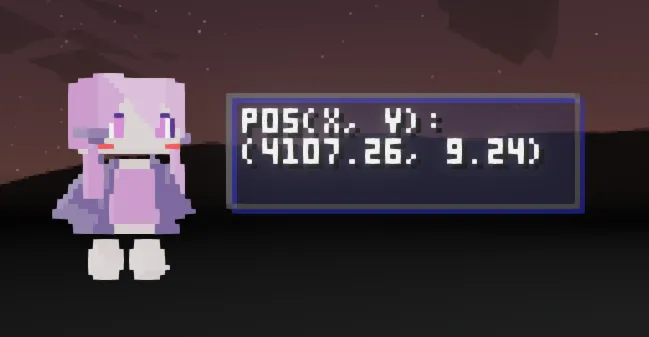

[img]https://images.steamusercontent.com/ugc/11812535172181491773/581DE0697E3F11B0F8F35B833B53EBB900A0B898/?imw=256&&ima=fit&impolicy=Letterbox&imcolor=%23000000&letterbox=false[/img]
PROPERTIE:
NAME
SET PARAM
MSG3
POS(X, Y):|(%3, %4)
COMPOSITE:
NO
NAME
SET PARAM
NOTE
7
motion ID
3
[MOTION] 2:WALK
9
message ID
3
[PROPERTIE] MSG3
13
val (%3)
(float64)
Feed Physics Sensor (1: X position) into composite(13)
14
val (%4)
(float64)
Feed Physics Sensor (2: Y position) into composite(14)
EMOTE
[hr]

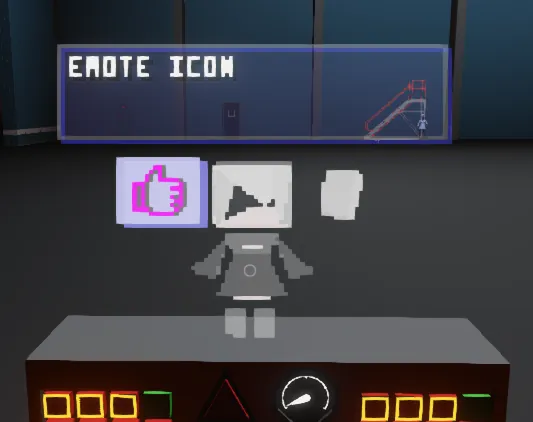

Set the emote ID to composite 5 to display the emote icon.
[img]https://images.steamusercontent.com/ugc/14215471468379208414/4194B4D794BD0FED427AF0AC9949A76836FBF64F/?imw=256&&ima=fit&impolicy=Letterbox&imcolor=%23000000&letterbox=false[/img]
The emote ID ranges from 0 to 89. (0:hidden)
Emote ID: 00–69 : Preset
Emote ID: 70–89 : User custom

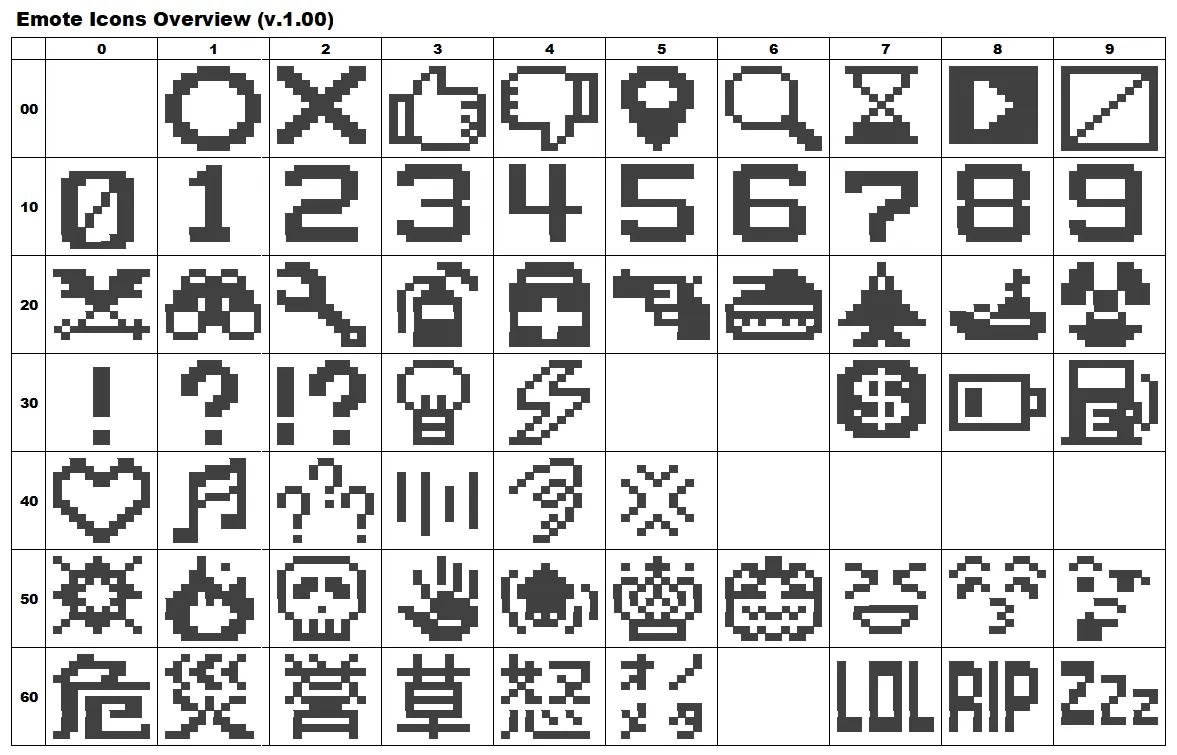

For preset emotes and instructions on how to add emotes, refer to the figure below.

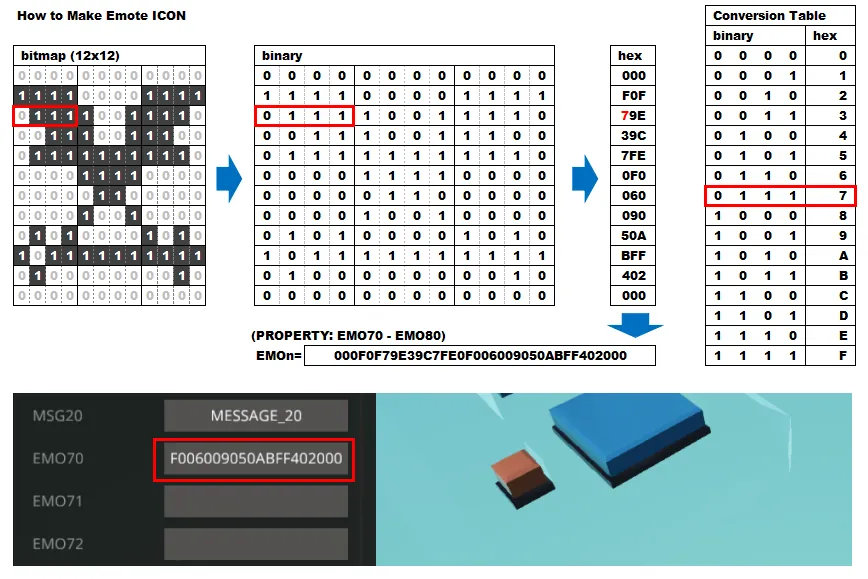

[img]https://images.steamusercontent.com/ugc/12744401305955251287/F2F53D6EF8B9B870BC48146CFBEBF38B7FCC0E5C/?imw=512&&ima=fit&impolicy=Letterbox&imcolor=%23000000&letterbox=false[/img]
[img]https://images.steamusercontent.com/ugc/17817208445216549916/7A13547318DC0B3F9645795A81E11CBEB0E3881A/?imw=512&&ima=fit&impolicy=Letterbox&imcolor=%23000000&letterbox=false[/img]
HISTORY
[hr]
2026-02-28, Ver. 1.00
- Added one new model (2B)
- Added emote display
- Other minor fixes
2026-02-22: ver. 0.92b
- Added two new models (Teto, Roll)
- Fixed an issue where per-face colors of the models were displayed incorrectly
- Added a setting for maximum characters per line
- Added a setting for message window position
- Added a setting for message window opacity
- Other minor fixes
