Customize based Multi Function Display. 3 built in functions and 4 external video input / touch output bypath.
Designed for monitor 1x1.

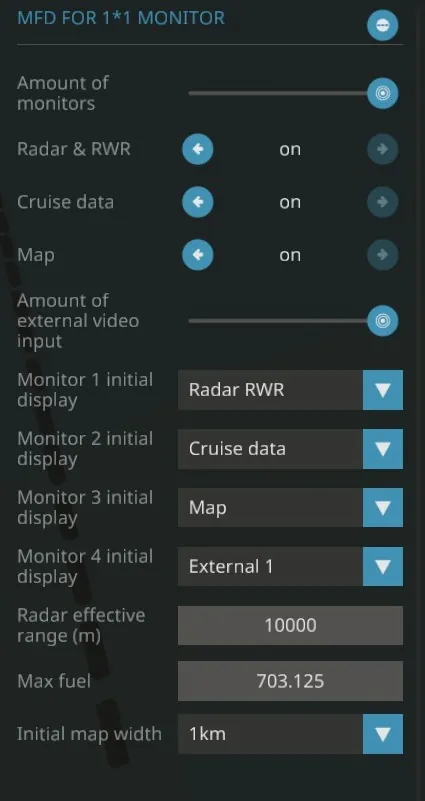

It can manage 1~4 monitors per 1 microcontroller. (Edit amount of connected monitor)
It automatically flips monitor when you call current function to other monitor.
Functions

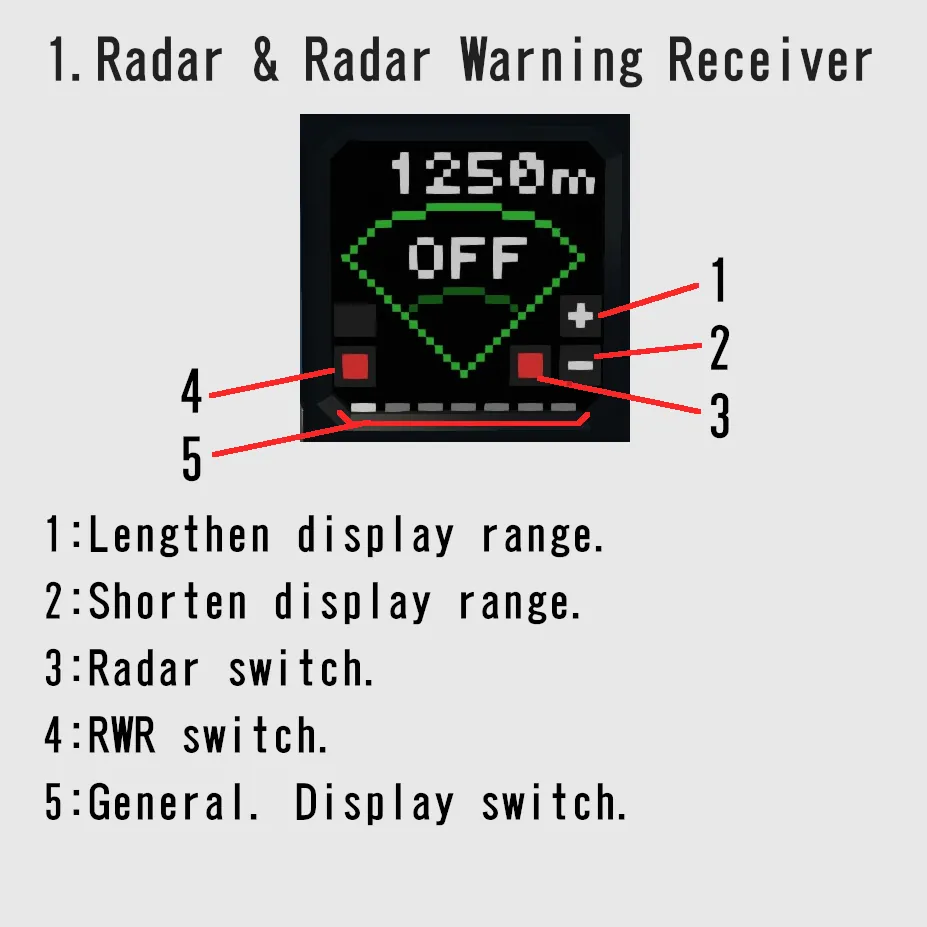

1 : Radar and Radar Warning receiver.

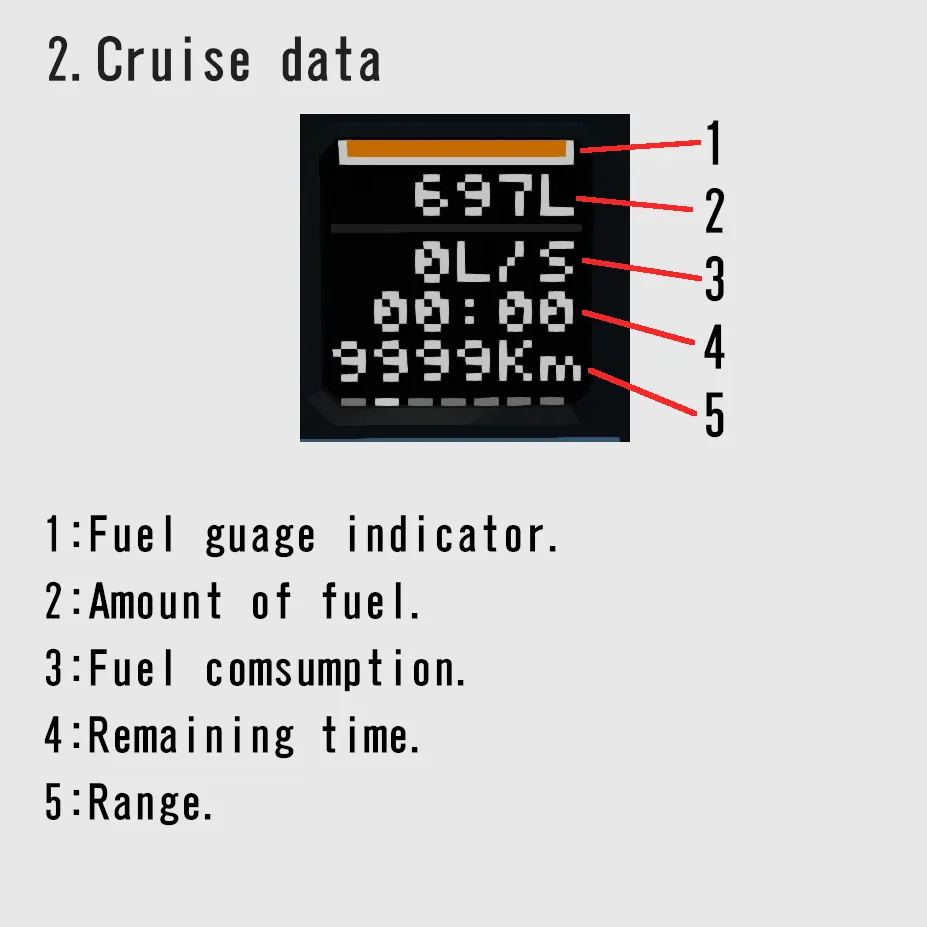

2 : Cruise data.

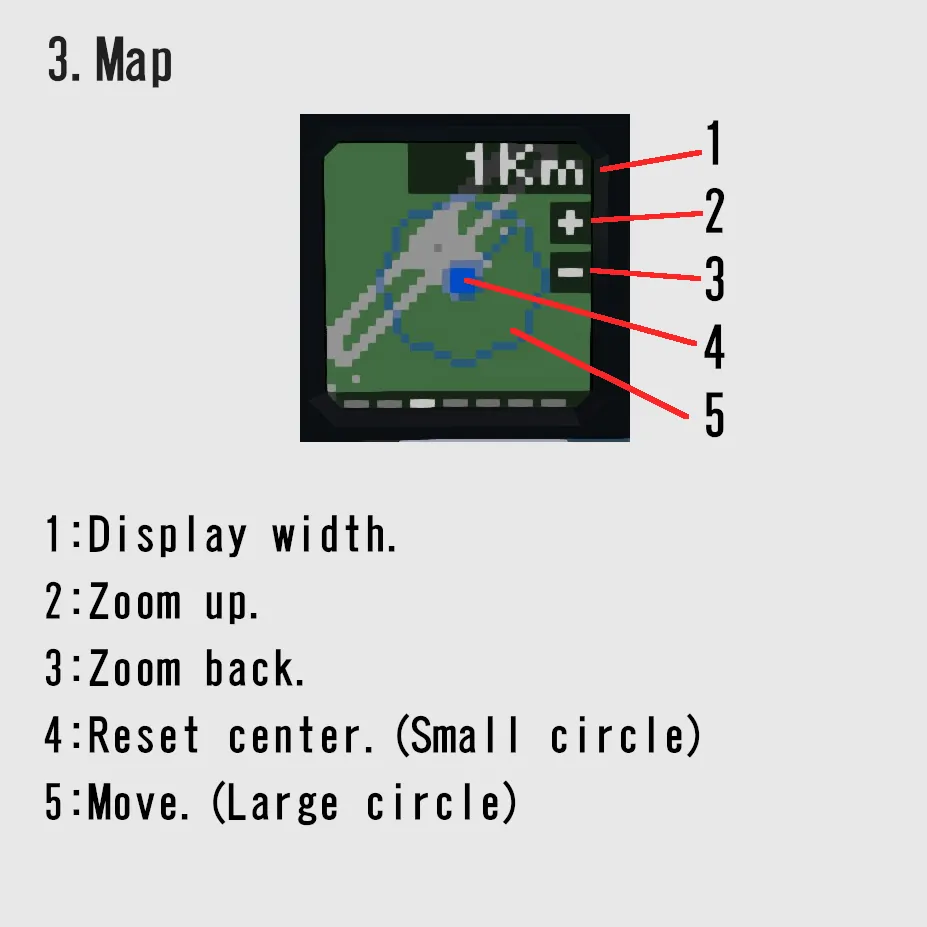

3 : Map.

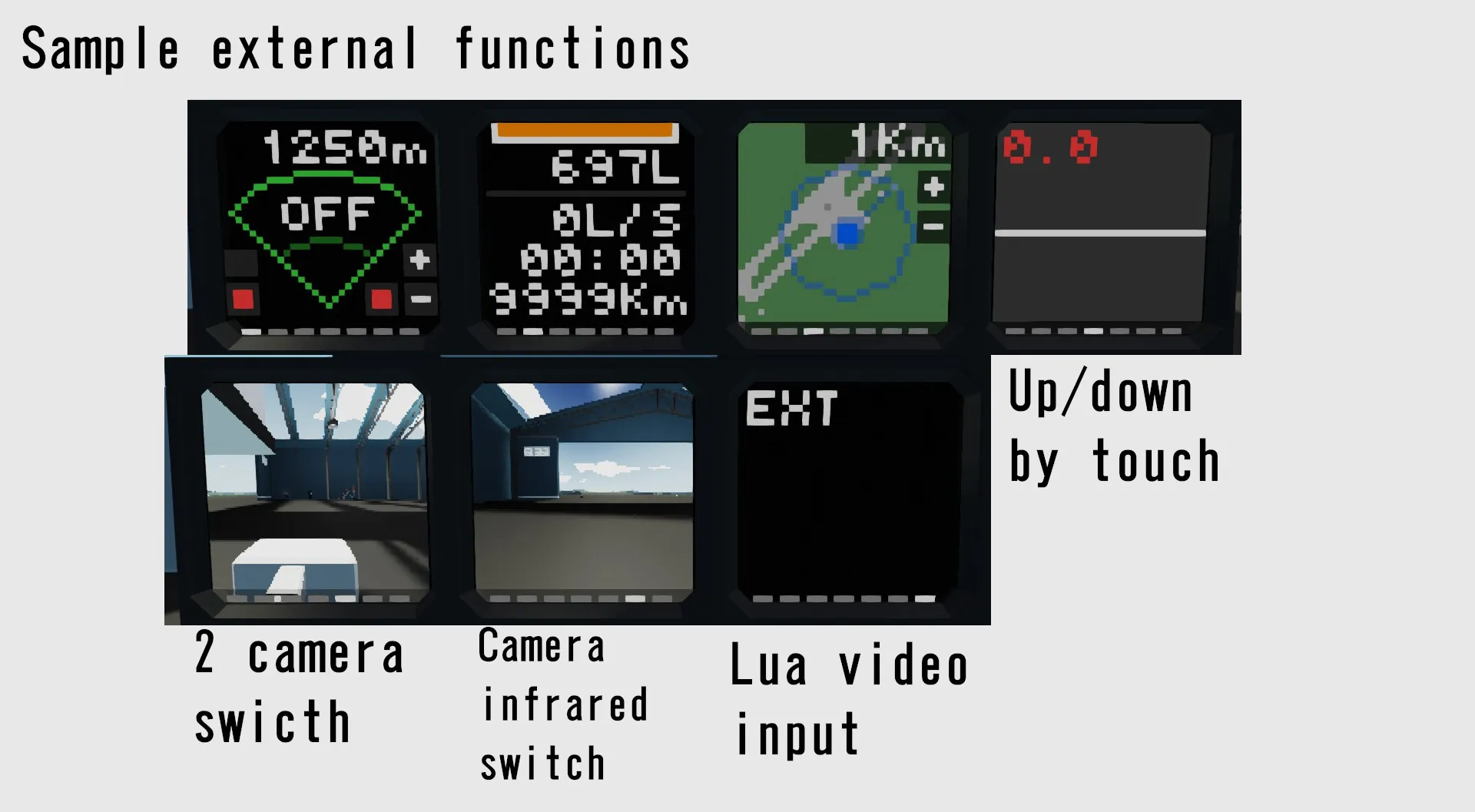

4~7 : External functions. Camera, other functions such as TCAS or something made by other player. This microcontroller can bypath touch data.
Radar indicator
Radar indicator color tells altitude difference looked from radar's horizontal angle.
Color
Difference
Purple
higher than 20m
Red
less than 20m higher or lower
Green
lower than 20m

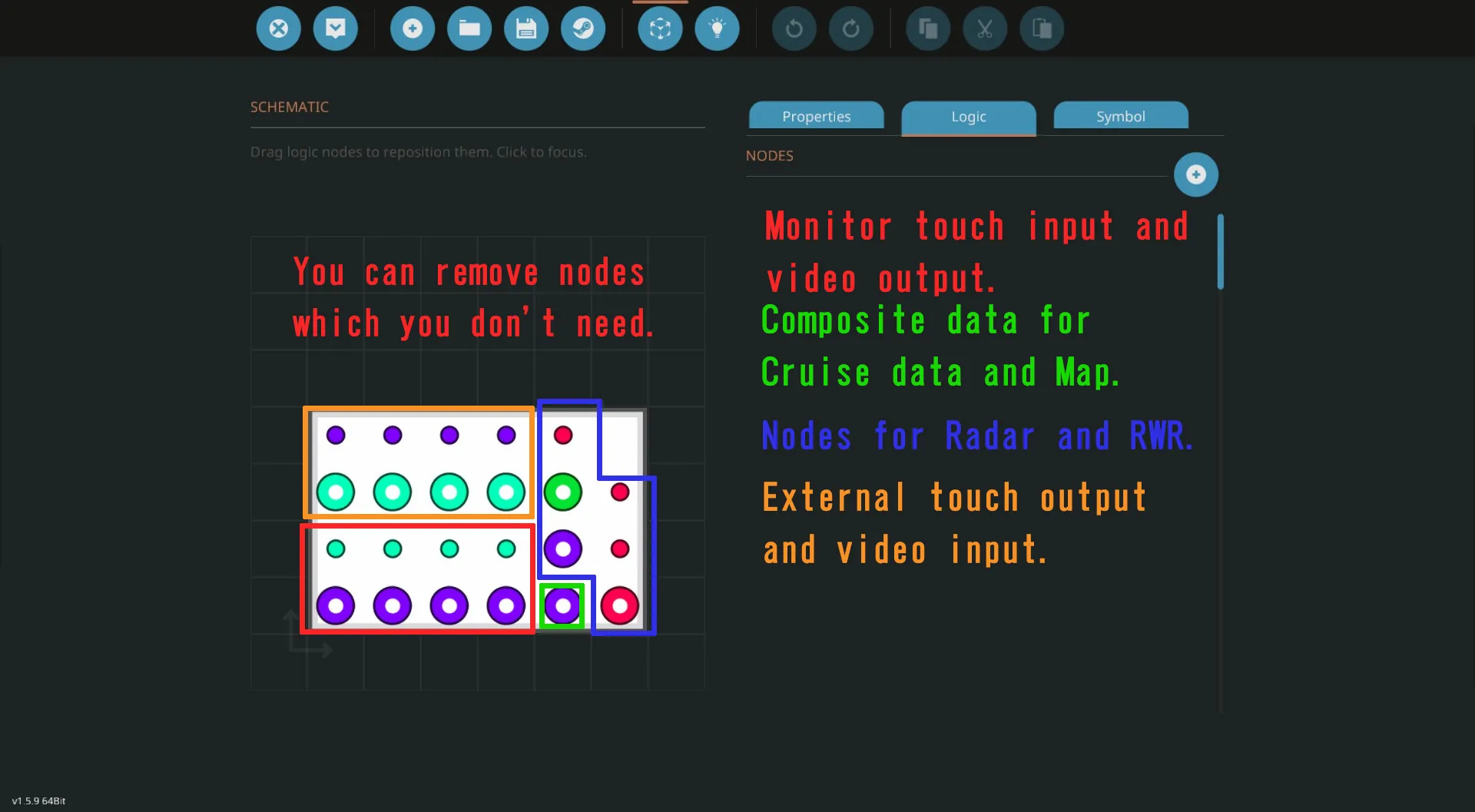

It can share the "flight data compositor" micro controller with
[url=https://steamcommunity.com/sharedfiles/filedetails/?id=2848219344]https://steamcommunity.com/sharedfiles/filedetails/?id=2848219344[/url]
