What is this?

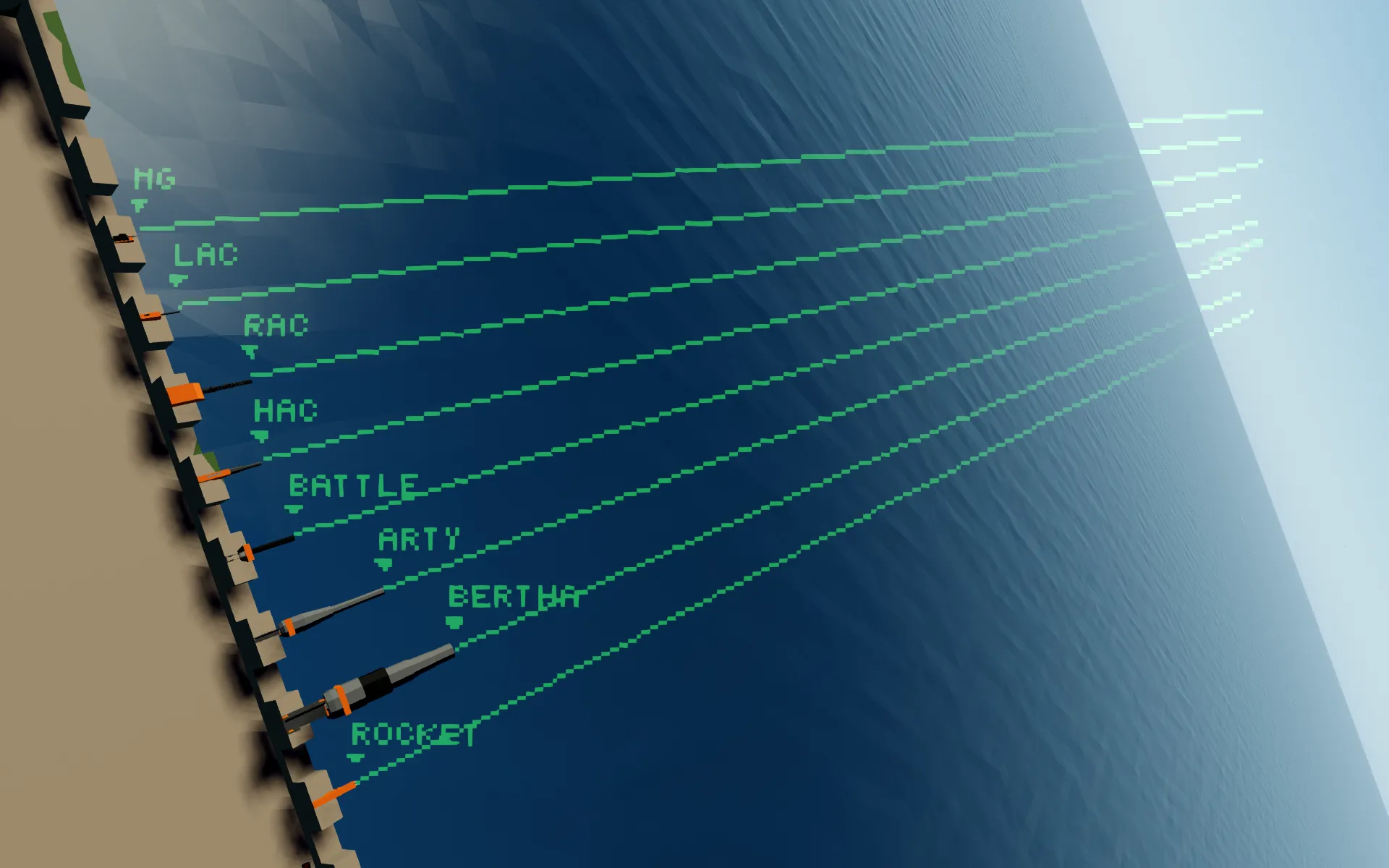

This projects the weapon's trajectory onto the seat's HMD.
Implemented features
[list]
[*] Display of ballistics on the HMD.
[*] Ballistic prediction for the following weapons, MG/LAC/RAC/HAC/Battle/Artillery/Bertha/Rocket.
[*] Display of target markers at specified distances on the ballistic trajectory.
[*] Lead computing sight.
[/list]
Unimplemented features
[list]
[*] Prediction of air density and gravity variations at high altitude.
[*] Prediction under water.
[*] Prediction of side wind.
[*] Predicting the weapon's RNG.
[*] Rocket's dispersion is probably large.
[/list]
Installation
[img]https://i.imgur.com/TSDBYbU.png[/img]
[b]HMD Gun Sight[/b]
Main microcontroller.
Inputs & Outputs
[list]
[*] Seat phys. sensor
Connect the physics sensor, which must be attached to the same body as the seat you want to use.
[*] Look X/Look Y
Connect to the look direction node of the seat to be used.
[*] Gun data
Receives data from the weapon side microcontroller.
[*] HMD
Connects to the video input of the seat.
[*] video input
Multiple weapon displays can be supported by daisy chaining to this input.
[*] Distance [m]
Input of distance to target. A target marker is displayed at the specified distance of the ballistic trajectory.
Entering a minus distance will display the target marker at the predicted position in the high-angle fire.
This is the distance from the weapon, not from the seat.
[*] Target size [m]
Sets the width of the ‘Trajectory Grid’ described below.
This input is optional, if not entered, refer to the property ‘Default Target Size [m]’.
[*] Lead Computing Toggle
Toggles the lead calculation on and off.
[/list]
Settings
[list]
[*] phys. to head X/Y/Z [voxel]
Set from the physics sensor to the position of the head.
[*] HUD Color R/G/B/Alpha
Set basic display color
[*] HUD Accent Color R/G/B/Alpha
Set highlight colour
Used for Trajectory Tracer/Trajectory Grid.
[*] Trajectory only
Show ballistics only.
[*] Decimation Rate [m]
Thinning rate of ballistic rendering.
[*] Trajectory Tracer
Rendering of virtual tracer bullets on the ballistic trajectory.
[*] Trajectory Grid
Displays horizontal lines on the trajectory at specified intervals. The length varies with the input to Target Size.
[*] Trajectory Grid Interval [m]
[*] Default Target Size [m]
[*] Target Marker offset X/Y
Set the display position for the specified distance and the number of seconds reached.
[*] Gun Marker
Display arrows and their names on the weapon.
[*] Off-Screen Gun Marker
Setting whether Gun Marker is displayed at the edge of the screen when the weapon leaves the screen.
[*] Lead Computing Sight
[*] Lead Smoothing
Smoothing of vehicle movement acquisition. (0to0.99)
Disable at 0. Do not set to 1.
[*] Max Prediction Ticks (-1 for no limit)
Setting how many ticks to predict the movement of the vehicle.
Do not set the value too high as this will cause lag.
[/list]
HMD Gun Sight/Gun sensor and settings
Microcontroller on the weapon side. Sends information to the main microcontroller.
Inputs & Outputs
[list]
[*] Gun phys. sensor
Connect the physics sensor attached to the same body as the weapon.
[*] Data to main mc.
Connect to the main microcontroller (HMD Gun Sight).
[*] Distance to target [m]
Input the distance to the target.
[/list]
Settings
[list]
[*] Gun type
Select the type of weapon.
[*] velocity magnification (for XML edit)
For XML-edited weapons, multiply the initial velocity of the bullet.
Usually does not need to be changed from 1.
[*] Muzzle offset X/Y/Z [voxel]
Sets the position from the physics sensor to the muzzle.
[/list]
