Customizable Artificial Horizon (WIP)
This project is still a WIP, and may recieve frequent updates in the future.

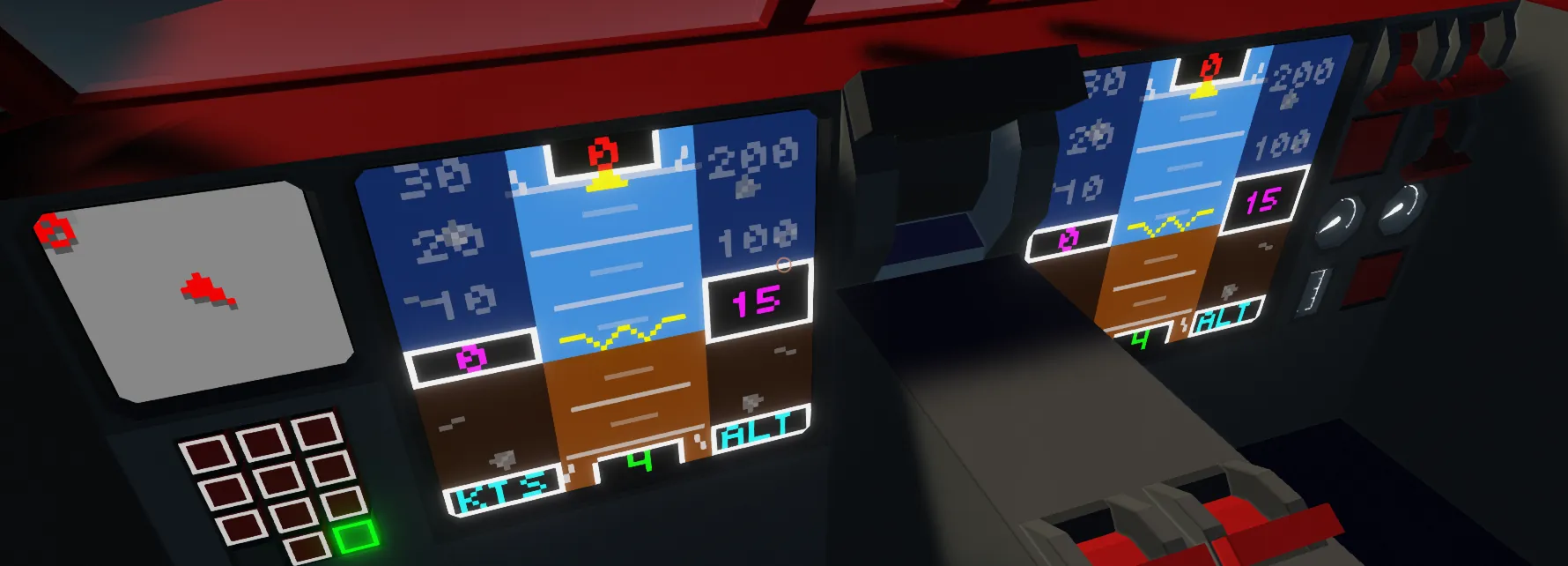

This is a customizable artificial horizon that has the below:
- The below can all be turned off at once with a toggle in the properties panel labeled: "Show information"

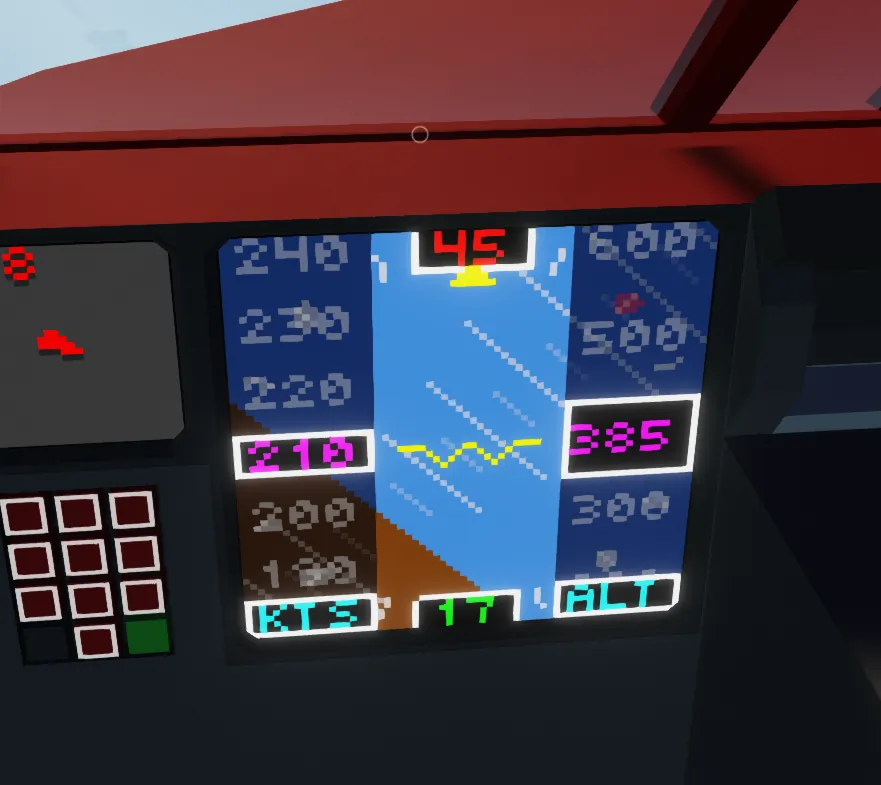

Speed in KTS on the left as a slider [scrolling numbers up and down]

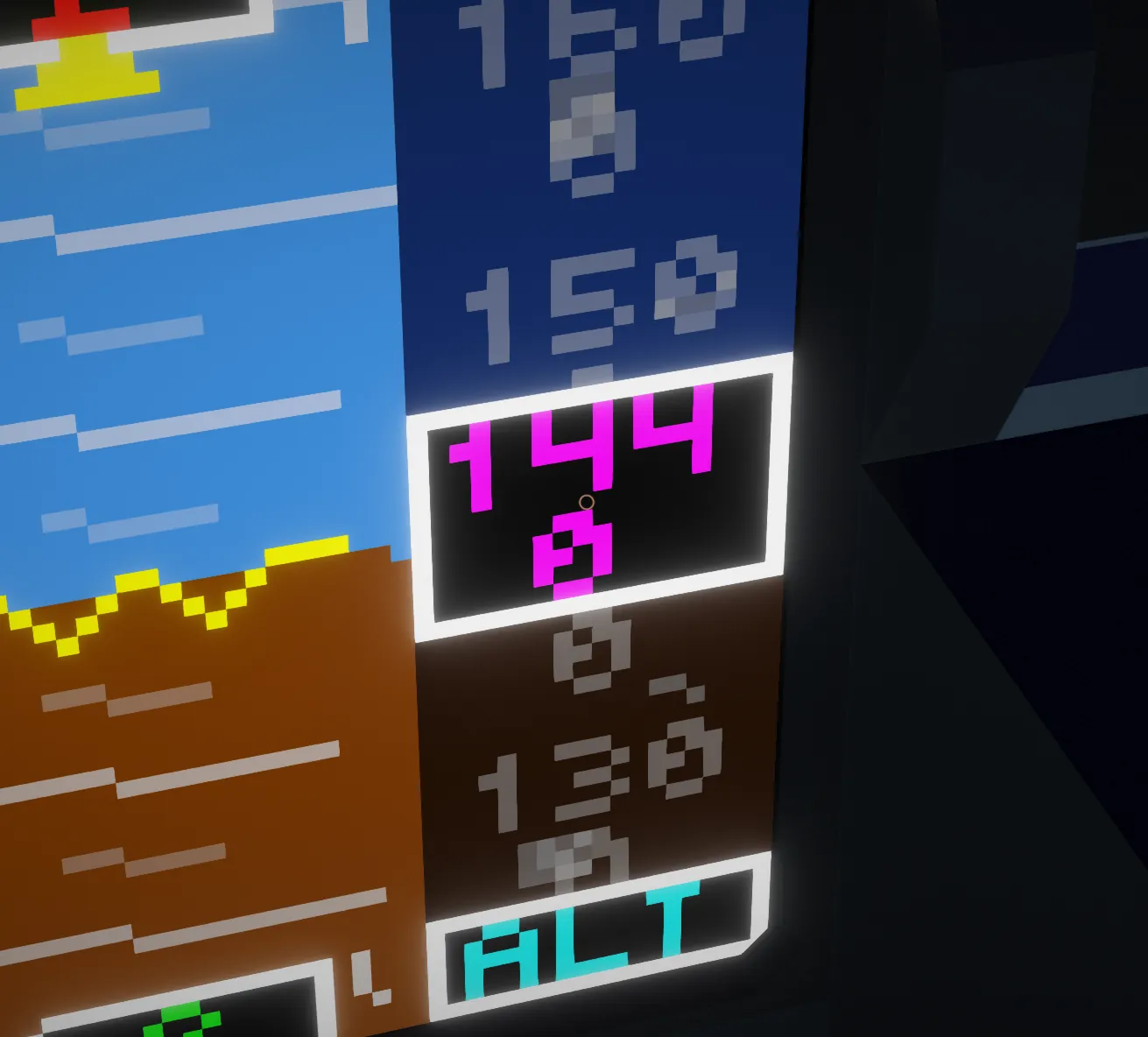

Altitude in meters above sea level on the right as a slider [scrolling numbers up and down]
Pitch angle in degrees on the bottom
Bank angle in degrees on the top
- The below can be disabled with a toggle in the properties panel labeled: "Angle lines"
Angle ring

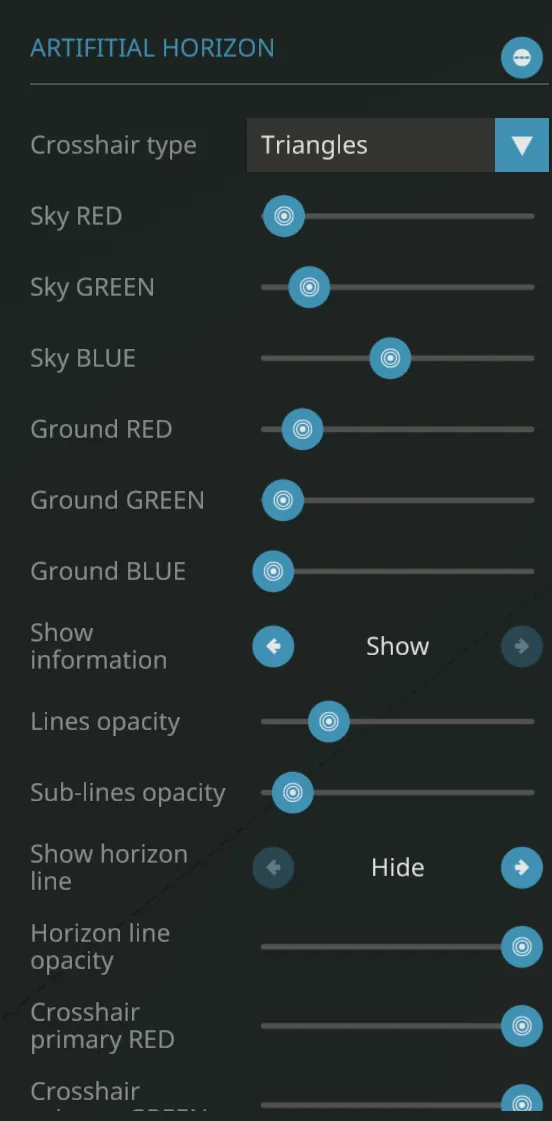

- The below's color can be customized in the properties panel.
Sky
Ground
Crosshair primary color
Crosshair secondary color

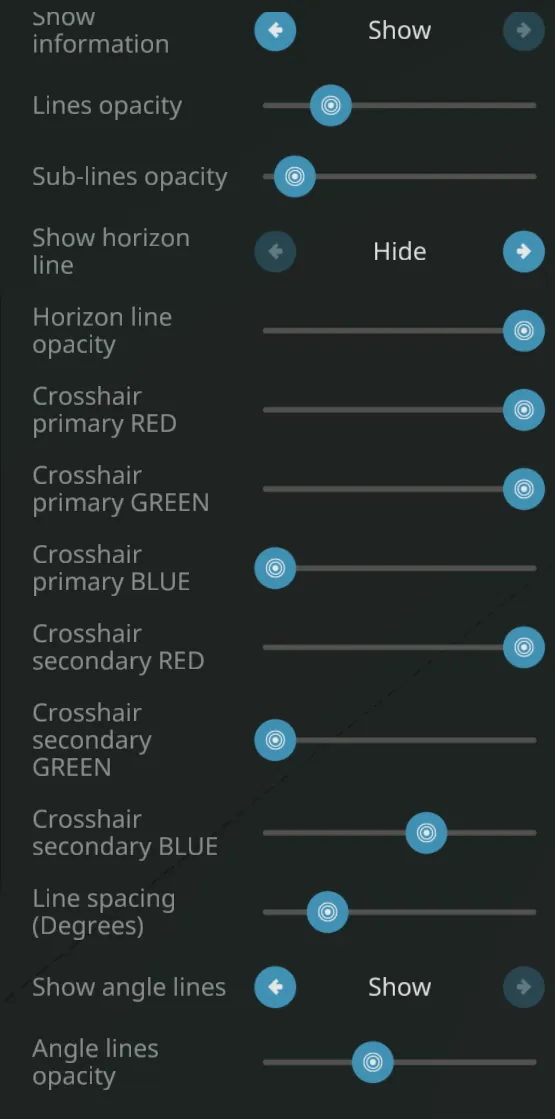

- The below's opacity can be customized in the properties panel.
Angle ladder [main]
Angle ladder [sub]
Angle ring
- The below's property can be changed
Crosshair type
Show horizon line [a white line across the equator]
Line spacing (Degrees) [Spacing of the MAIN lines in global degrees, SUB lines go in between]
If the microcontroller detects a monitor with equal or less than 32 pixels, it removes the side bars (as they take up 18 pixels wide each, totaling 36), and replaces them with 2 pixel wide black rectangles concaving around the horizon.
Tags: Artificial horizon, Navigation, Air, Space, Custom, Customizable, WIP
