Numerical Data Collection Microcontroller
This microcontroller allows you to efficiently and dynamically visualise how a single number input changes over time, by making a graph for you to gawk at. The scale changes dynamically with the input value. It works with any screen size, and can be controlled both using logic inputs and touchscreen presses.

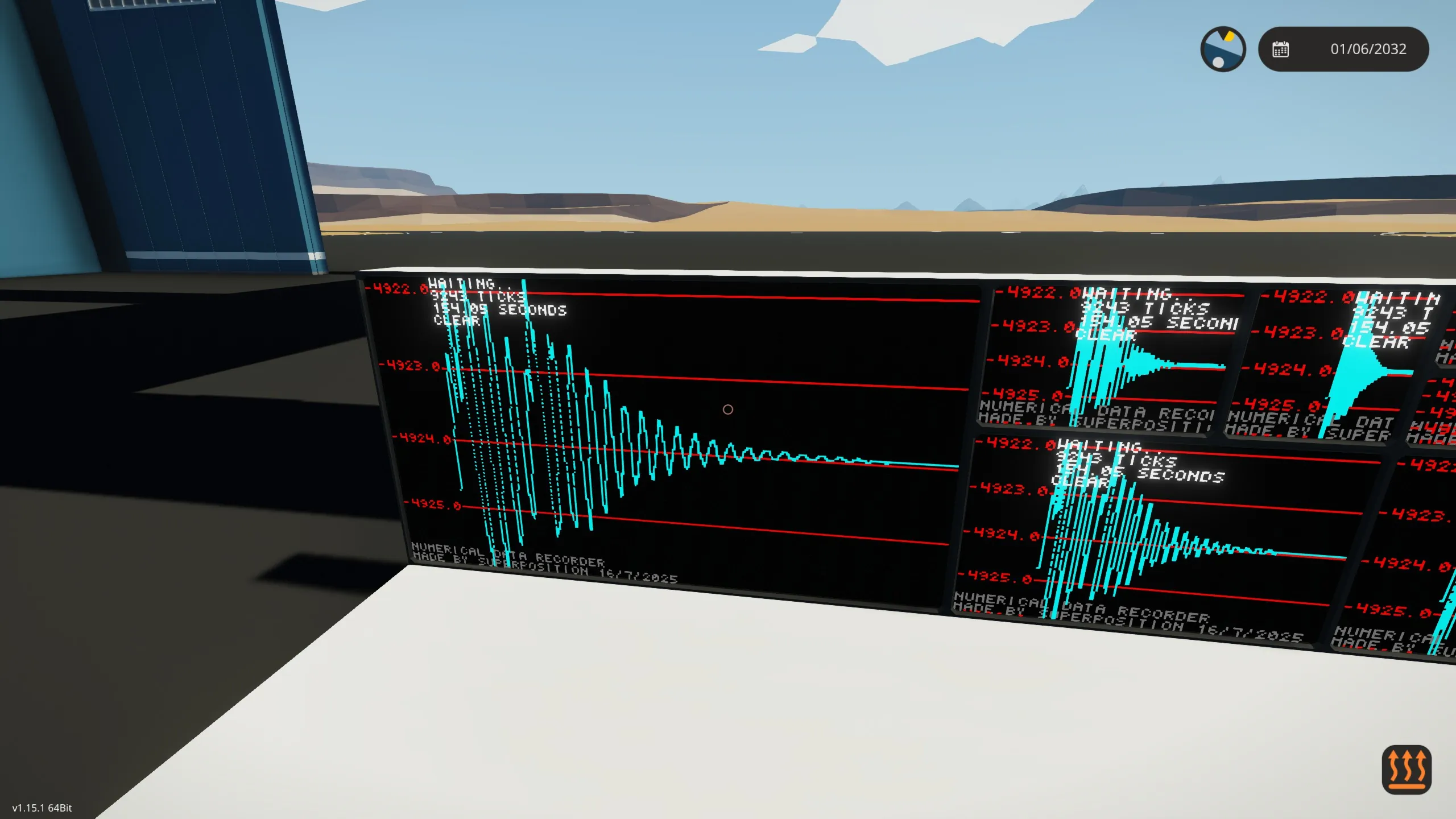

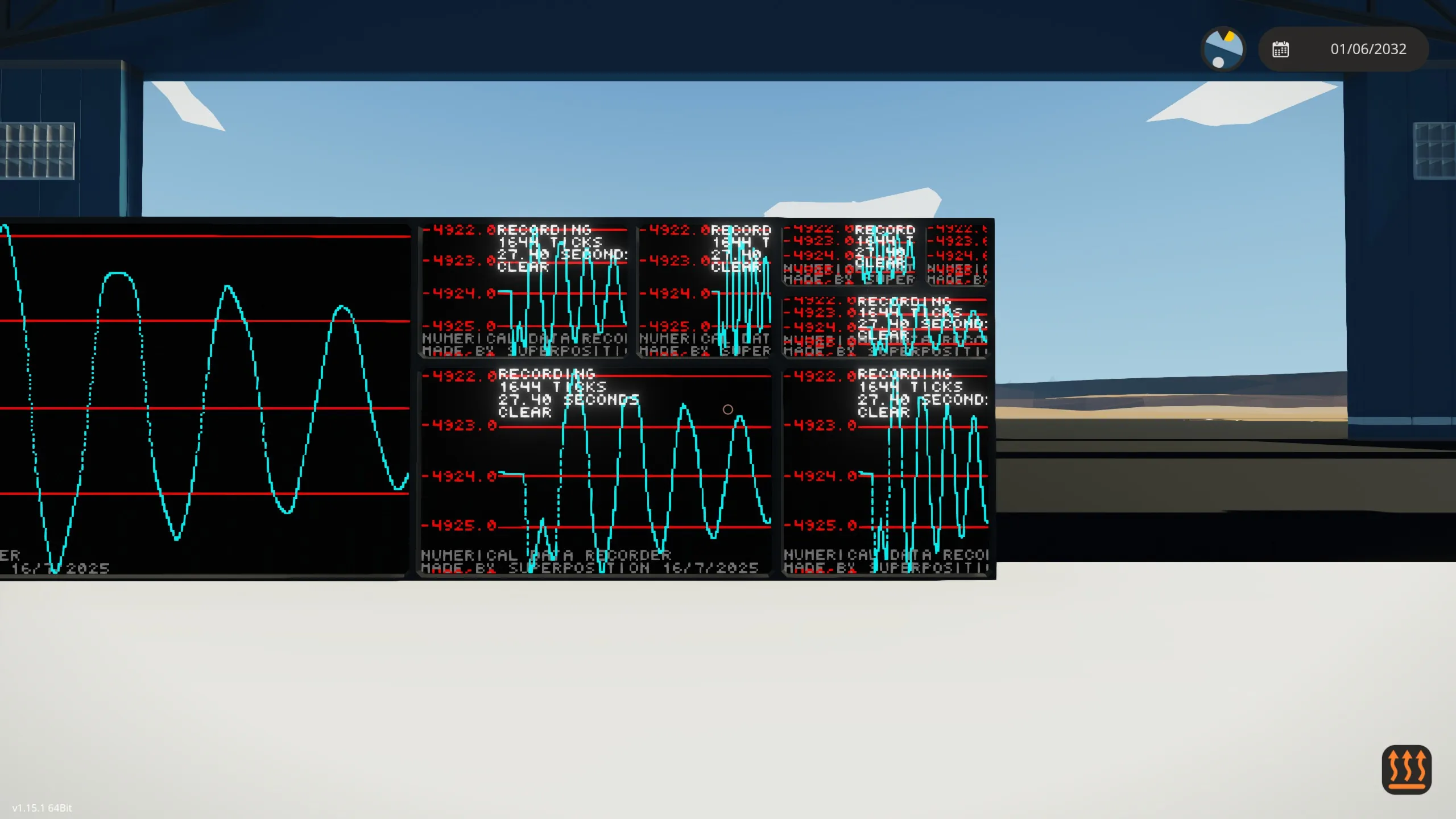

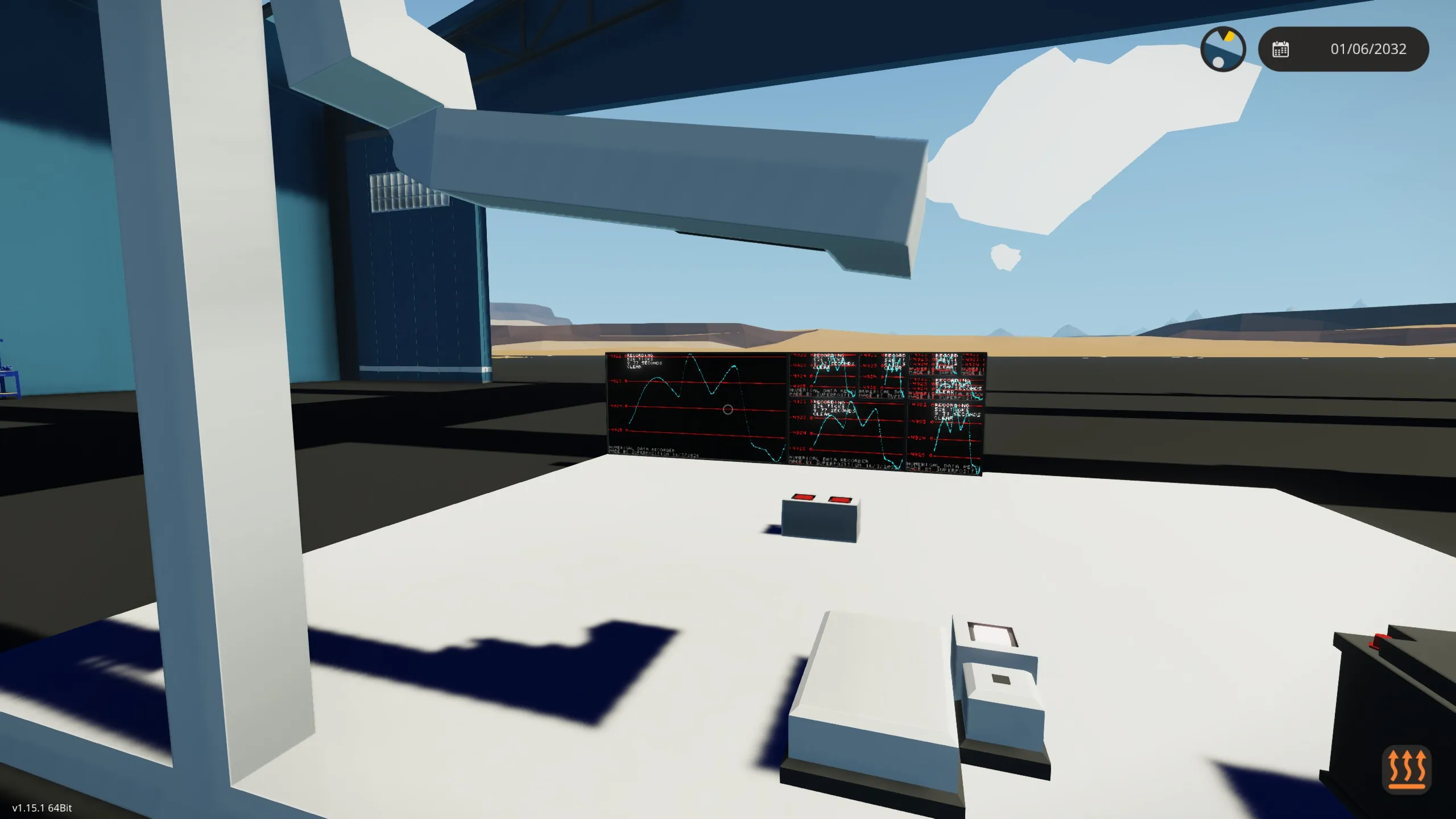

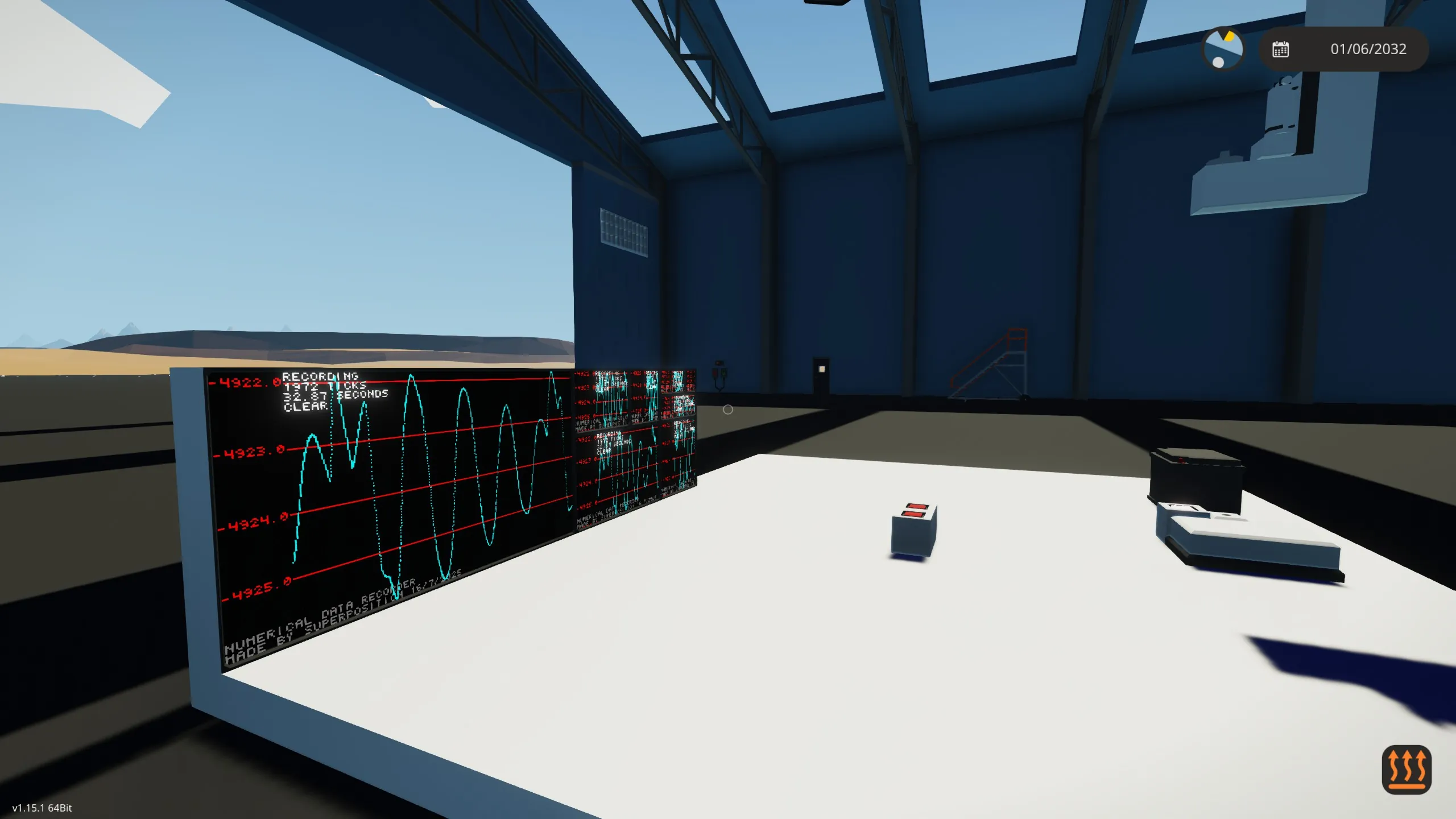

The images above are from a test creation I made, in which I configured the microcontroller to display various properties of a double pendulum that I was able to swing to test the system, which accounts for the oscillating, sinusoidal graph shown.
Having a monitor of at least size 3x2 is reccomended, but the device is (theoretically) usable with monitors as small as 2x1.
PS: This thing has been sheltered inside the hangar ever since its construction, and it's never seen messy engine stochiometry data, radar data or the like, so please be careful with it. I don't know how much data it can withstand.
