Stormworks Modular Engine ECU
-Implements:
-AFR based on temperature and stoichiometric coefficient
-Fuel calculation based on air throttle and pressure
-Idle throttle control
-Starter logic
-Autostarts if stalled

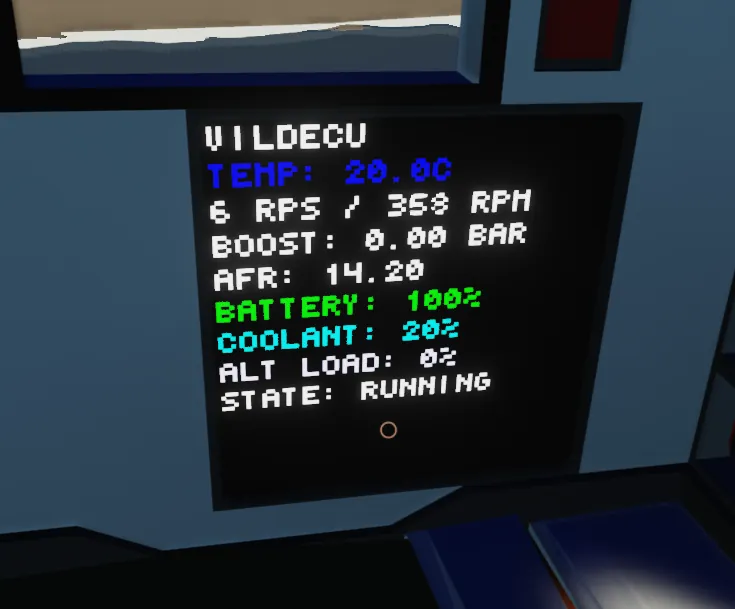

3x3 Displays
Temperature
RPS/RPM
Boost if you are running a compressor to it
Air fuel ratio
Battery %
Coolant clutch %
Alternator load %
Engine state: Starting, running etc
Target idle rps

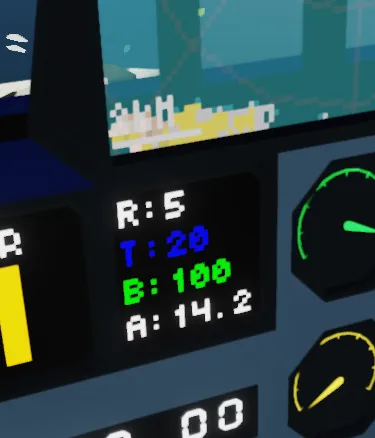

1x1 Displays
RPS
Temperature
Battery %
AFR

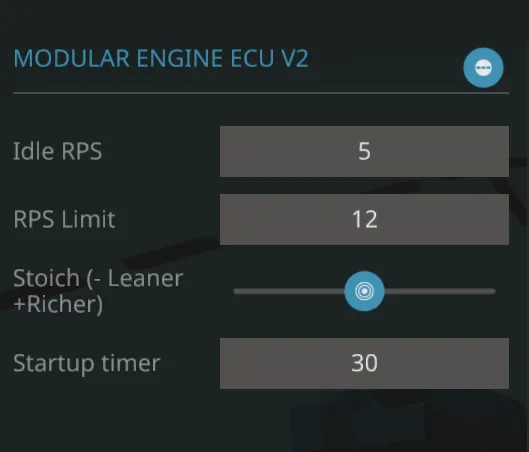

Quick number input for wanted Idle and revlimit
Slider for quickly adjusting if engine should run richer or leaner for maximum efficiency
No need for pressure sensor unless forcing air into engine.
Engine will engage starter for set time in configmenu seconds until idle is achieved, if it fails to start it will retry in 2 seconds, it will try to start 3 times, if not successful it gives up until prompted to try again (configurable in lua)
No need for temperature sensor if using composite output
