ZE 6-gear Auto/Manual Transmission
Description
Automatic or manual 6-gear combinative transmission with extra reverse and low gear, requiring 4 gearbox blocks.
[list]
[*] Overall gear ratios are:
0.14
0.26
0.44
0.62
0.8
1.11
[*] In manual mode gears are shifting sequentially. In automatic mode gear shifting is tuned only by a single engine RPS threshold.
[*] When Manual type is selected, the numeric output node indicates the current gear. When Auto type is selected, transmission is in Drive mode by default and the numeric output node indicates current mode:
2 Low gear
1 Drive
0 Parking
-1 Reverse

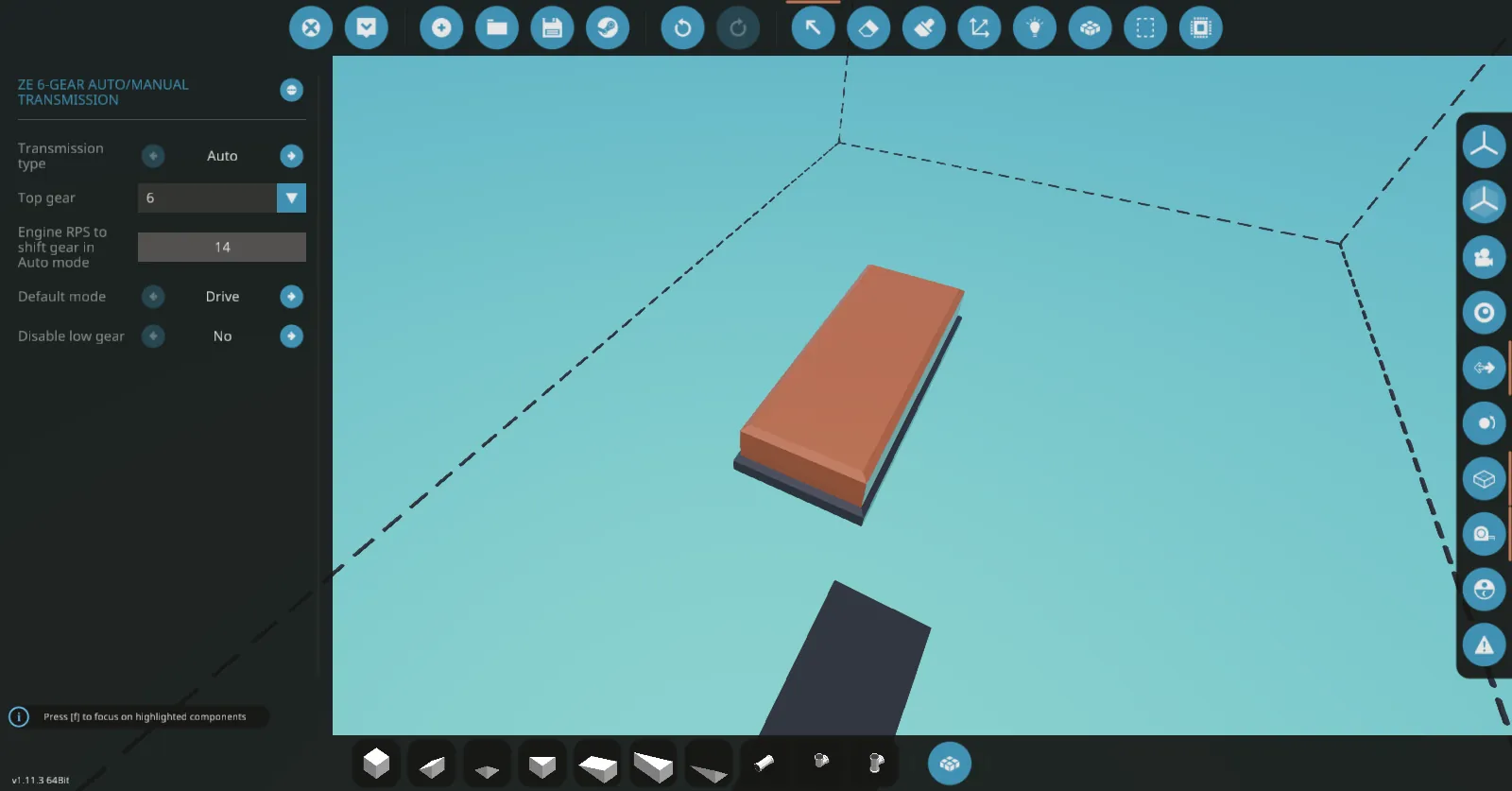

[*] In order to limit the top speed you can cut the top gear down to 5-th in microcontroller properties.
[*] The 0-gear is just a placeholder between reverse and 1-gear or Drive mode, so you need a clutch to emulate the Neutral gear in your setup.
[*] You can prevent automatic downshifting with a corresponding node if the engine is under heavy load.
[/list]
Assembly
[list]
[*] Set the gear shifting buttons to the [b]PUSH[/b] mode.

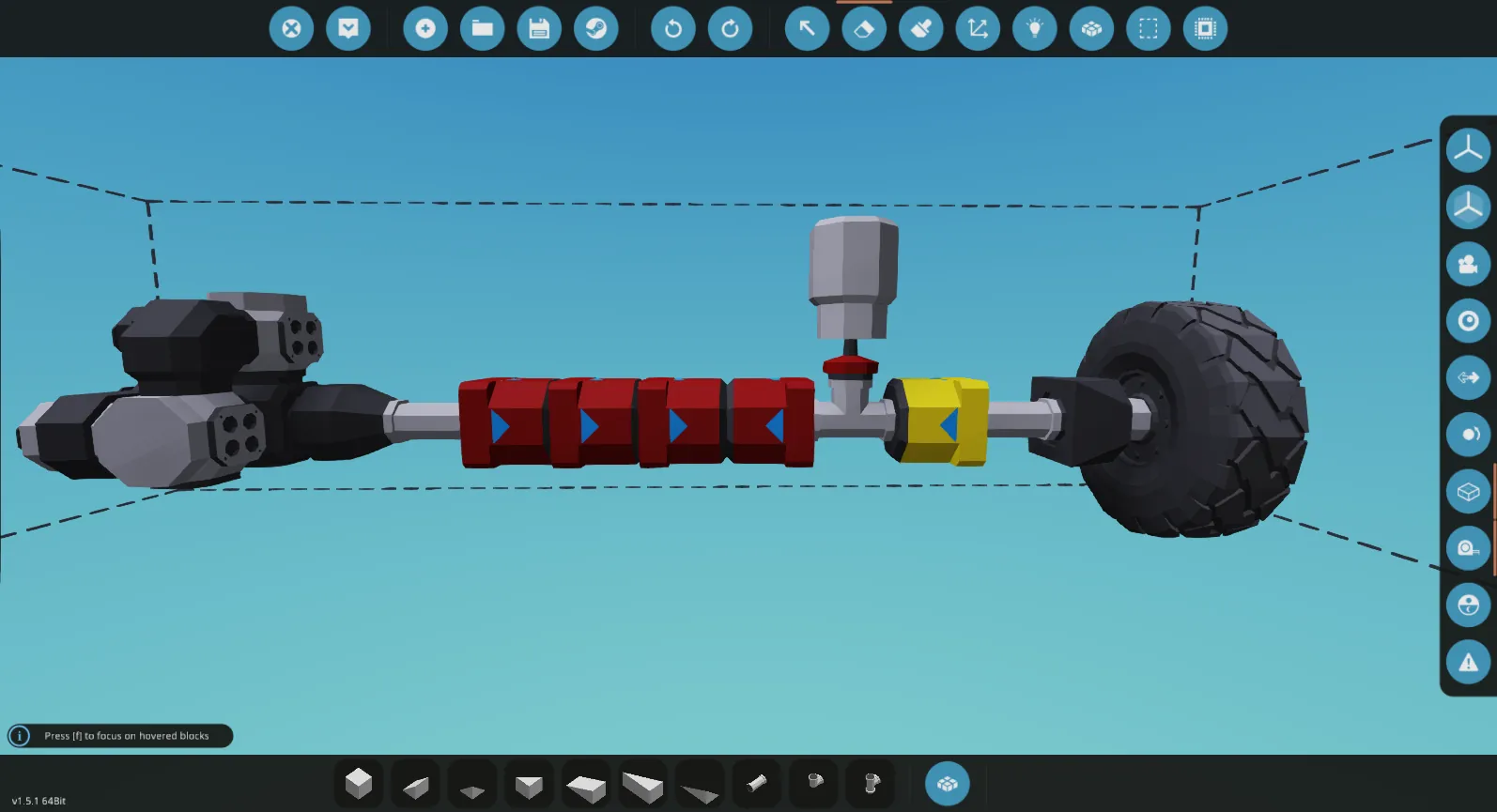

[*] Transmission requires 4 gearboxes and torque meter, which should be assembled in the following order:
[/list]
Engine
Gearbox 1
Gearbox 2
Gearbox 3
Gearbox 4
Torque meter
Optional..
Wheels
▷ Triangles ▷
▷ Triangles ▷
▷ Triangles ▷
◁ Triangles ◁
..gearbox..
Ratio Off 3:1
Ratio Off 2:1
Ratio Off 9:5
Ratio Off 2:1
..to adjust..
Ratio On 1:1
Ratio On 9:5
Ratio On 1:1
Ratio On 1:-1
..the top speed
[list]
[*] To adjust the top speed, insert an extra gearbox with any gear ratio between torque meter and wheels.
[url=https://steamcommunity.com/sharedfiles/filedetails/?id=2198662463]Assembly reference.[/url]
