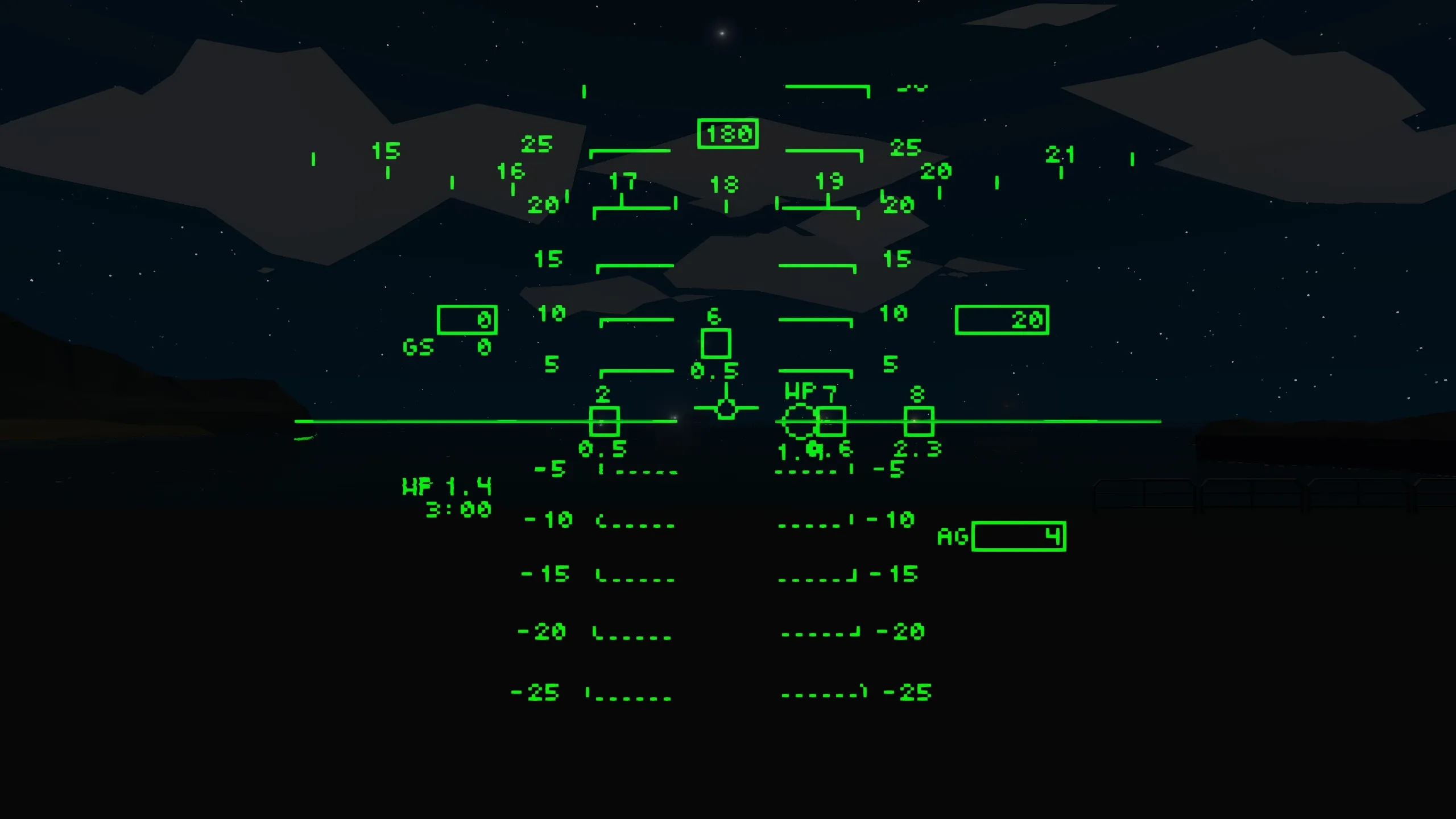

I created a new HMD that supports lock-on!
Features
- Seat HMD
- Three-dimensional
- No display error
- Free to customize
- Easy setup
- Direction correction for laser range finder
- Waypoints can be displayed (WPD1 input)
- Radar responses can be displayed (SRD1 input)
- Map V2, SR V3 included
Description

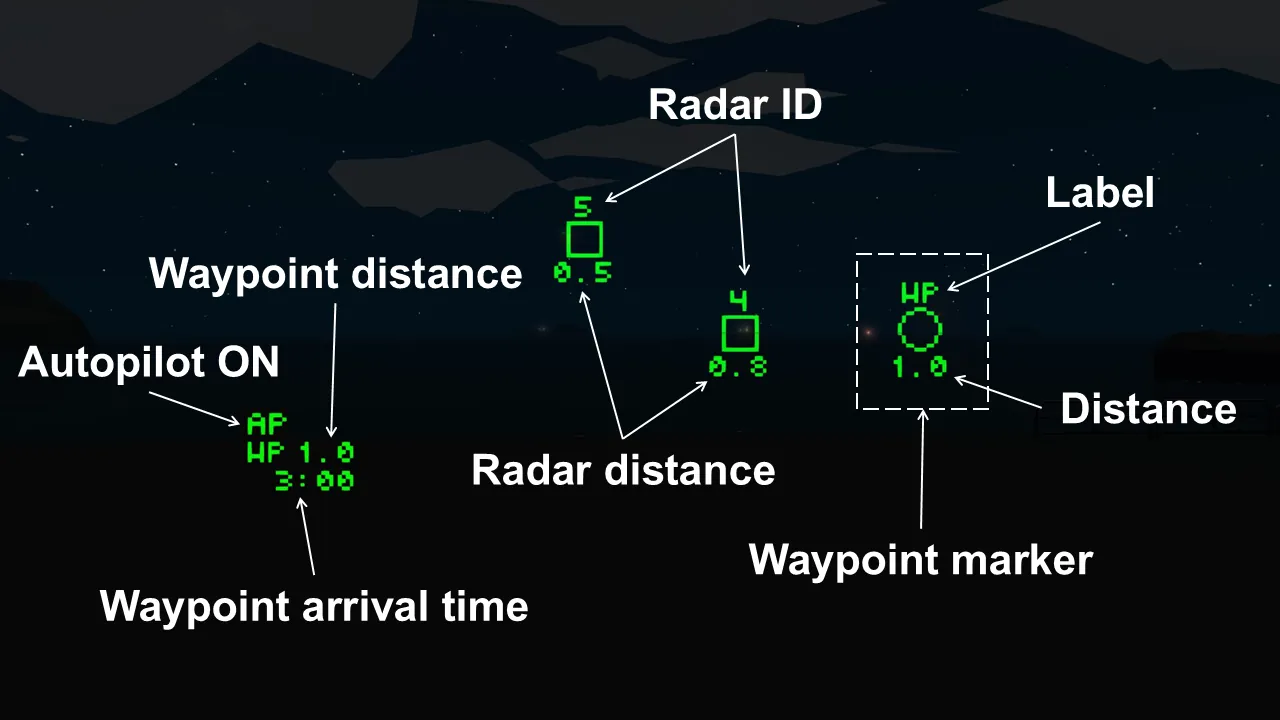

Improved HMD V1 to display waypoints and radar responses.
Each uses WPD1 and SRD1 input terminals, and can be displayed correctly if the input is in the correct format.
Terminal description
WPD1 input terminal
number
Content
1
Waypoint X coordinate
2
Waypoint Y coordinate
3
Waypoint Z coordinate
4~6
None
7
Waypoint distance[m]
8
Waypoint arrival time
bool
Content
1
ON when waypoint exists
2
Automatic navigation ON, OFF state
SRD1 input terminal
number
contents
1
Target X
2
Target Y
3
Target Z
4
Target ID
5~24
Repeat
If you do not enter any target information, please set Target ID = 0.
Property supplement

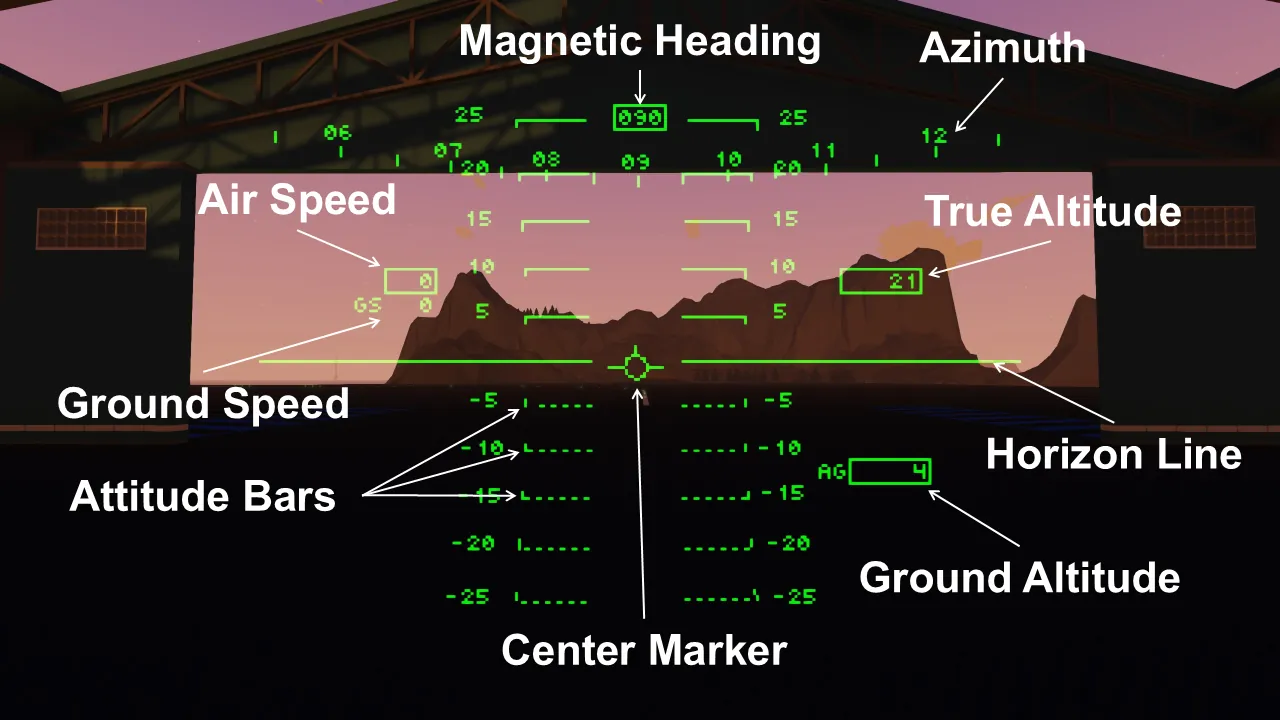

main speed: You can select the speed to display in the square frame. If you select "ground speed", the ground speed is displayed in the box and the air altitude below it.
